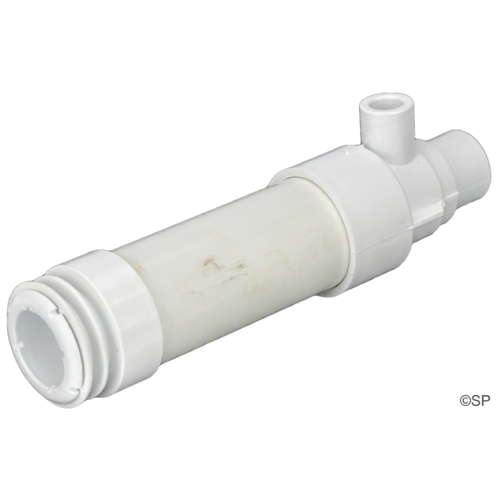

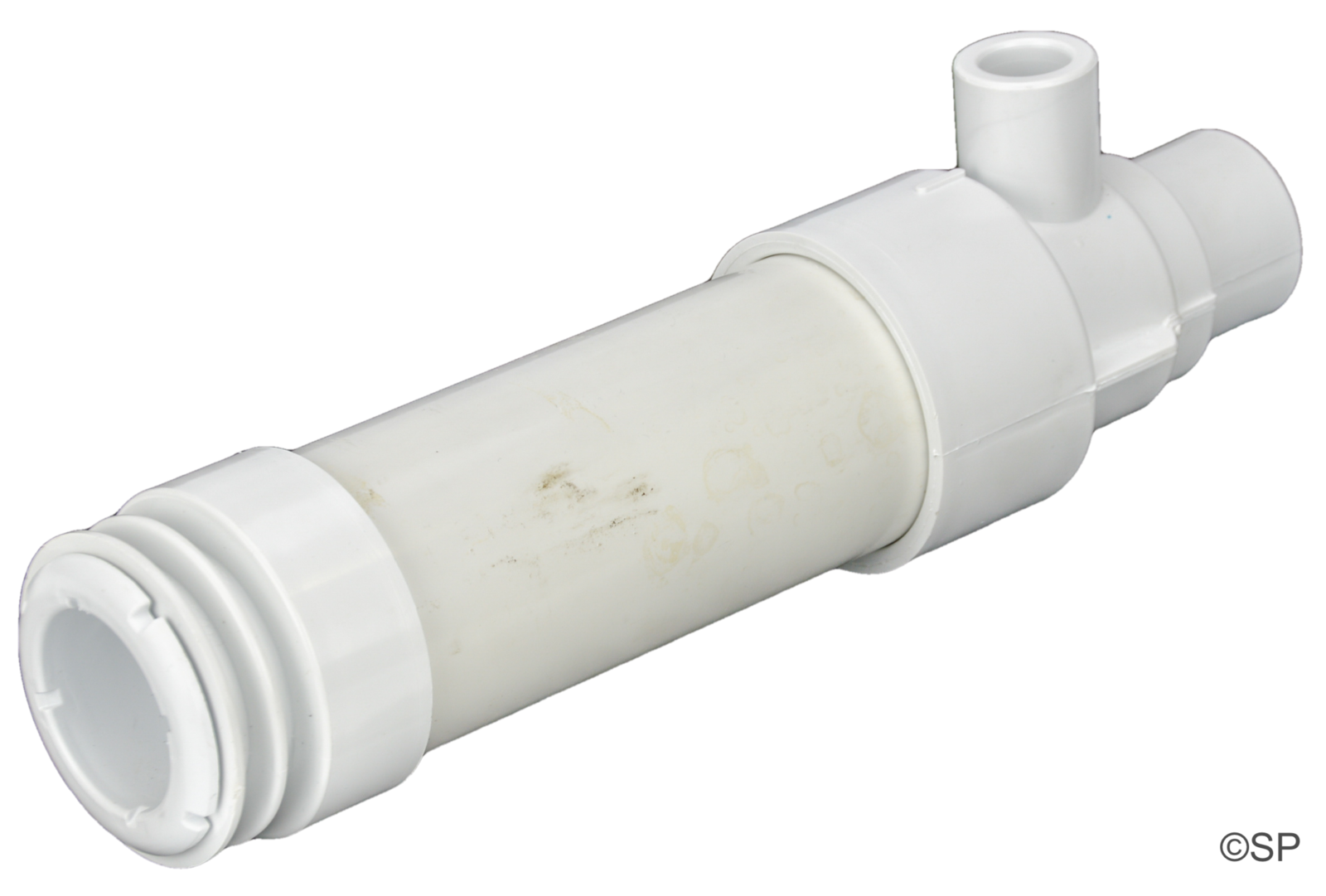

Waterway Mini Storm Straight Body Concrete Gunite Spa Jet Assembly - Complete - THREADED Version

Waterway Plastics Mini Storm Gunite Jet with straight body - Suits newer THREADED version jet barrel

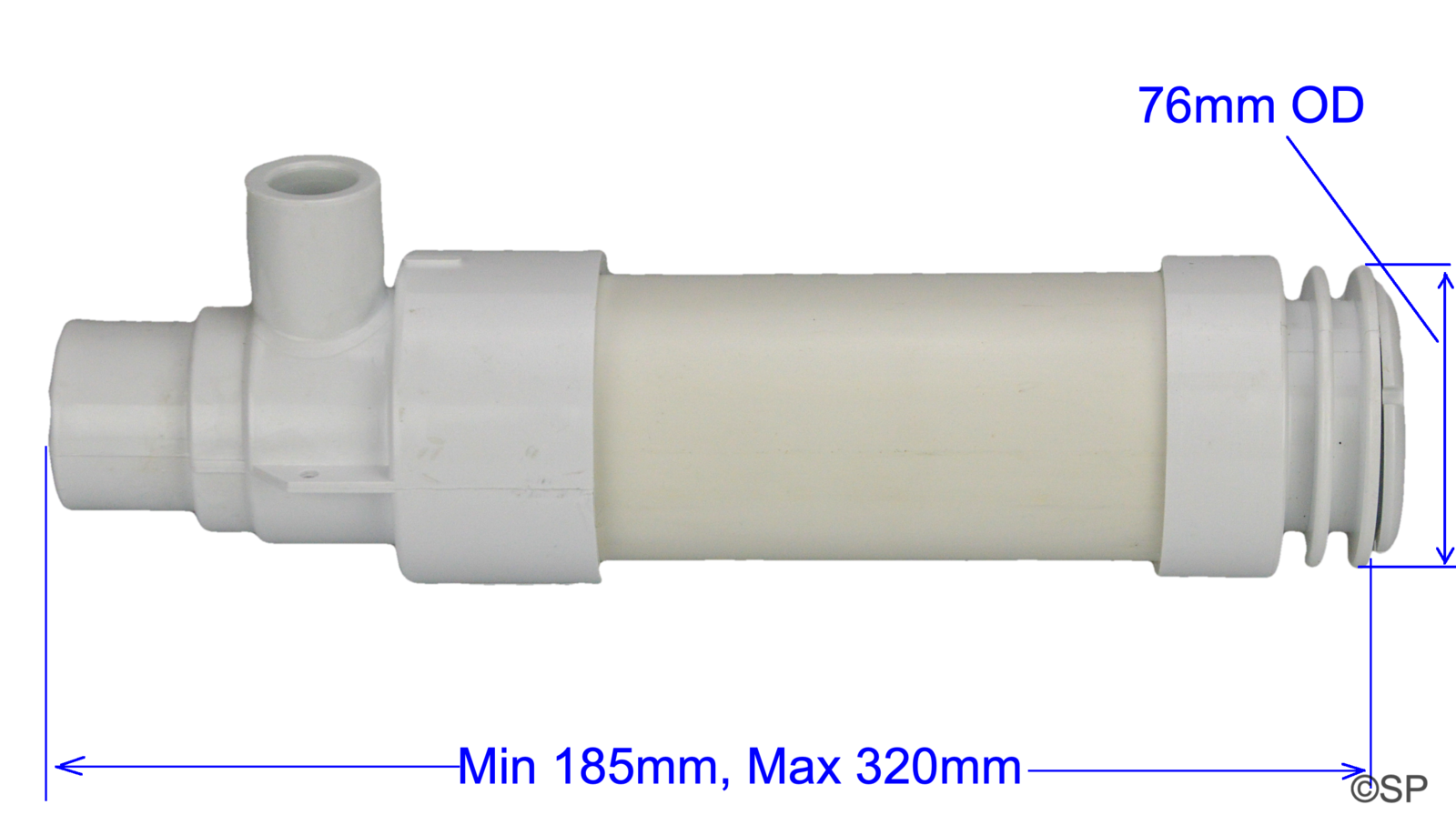

Smaller 75mm diameter faced jets.
200mm long pipe sections for most applications.
Concrete spa jet - air mixes from venturi at the jet nozzle, rather than back in the jet body.
Allows the use of a selected range of Mini Storm THREADED jet internals only.

Includes:

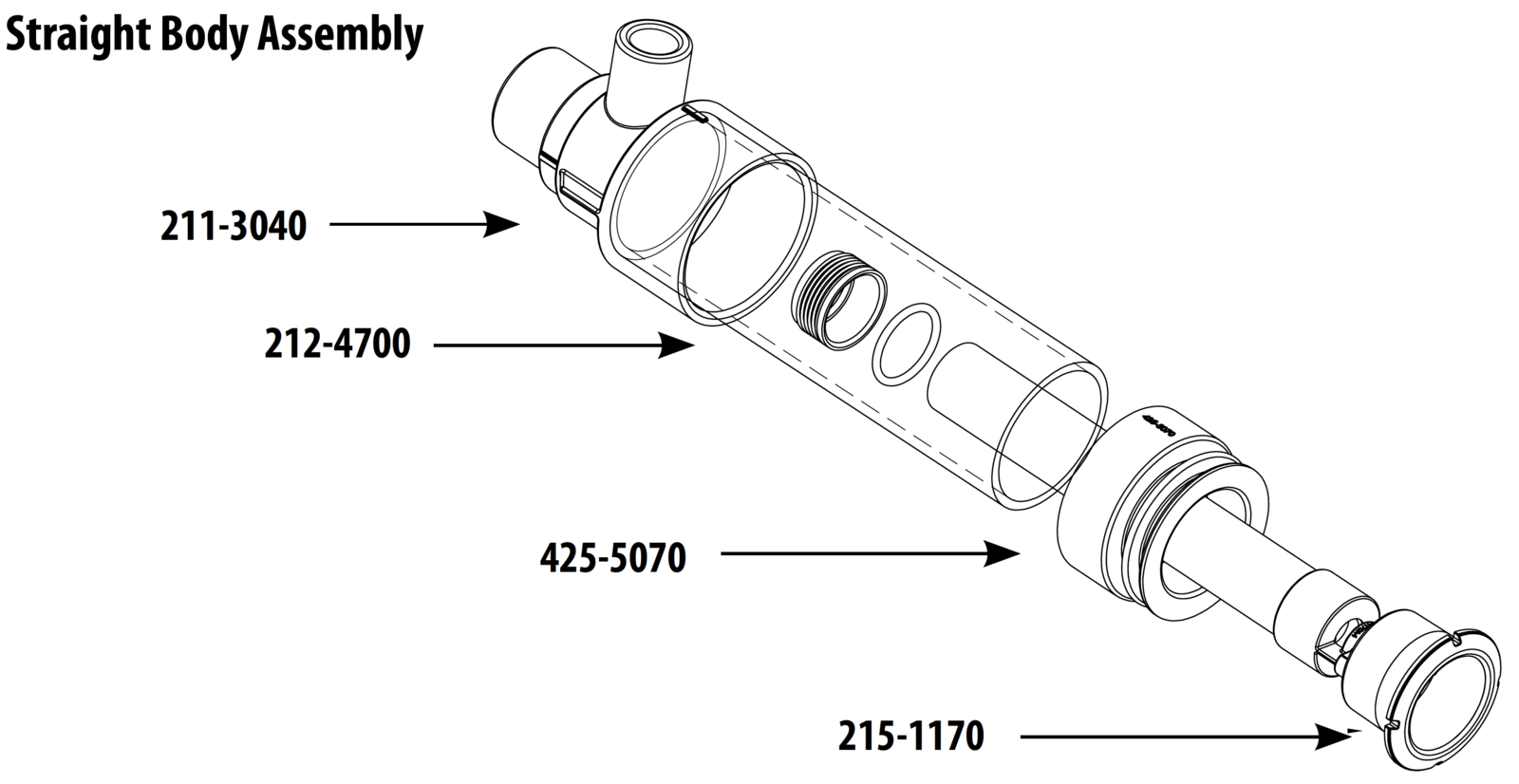

Jet - straight body assembly
USA 2.5" x 8"/200mm pipe section
1" pipe section x 8" / 200mm

1"S / 1.5"Spg straight water x 1/2"S / 1"Spg air pipe connections Only requires jet internal for complete system .
This jet body design may be more installation friendly where jets are to be plumbed in close proximity to one another, where smaller air venturi pipes are desired, or single air venturi controls per jet, or where freedom of plumbing is to be maximised.
The plumbing to the jets can be directly into the rear of the jet, or from an elbow (45 or 90 ell), or a Tee as required.
Plumbing for water is either 1" or 1.5".
Air venturi plumbing is either 1/2" or 1".

Installation requires the positioning of the plaster niche at finished surface level during construction.

Internals available - sold separately

See images for options of what can be achieved with 'grouped' jets.
