Waterway Dual-Flo Jet Internal -Diverter Swimjet - 5 Point textured - Grey

Waterway Plastics Dual-Flo Swimjet ,Whirlpool, or Diverter jet internal jet barrel

Popular on Maax Spas and many others

5 scalloped indents around the textured jet face

Discontinued line - complete replacement/replumb with this jet here


120mm diameter face,
36.5mm ID nozzle,
25mm orifice

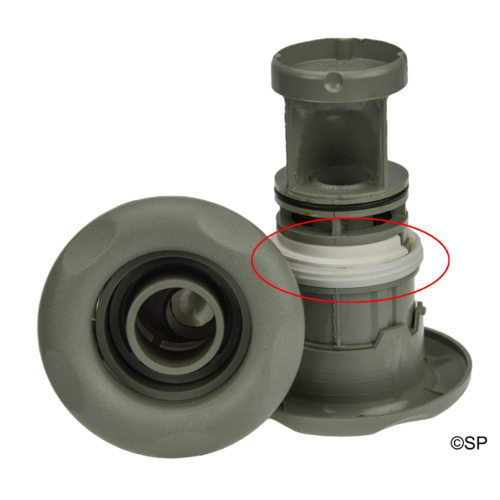

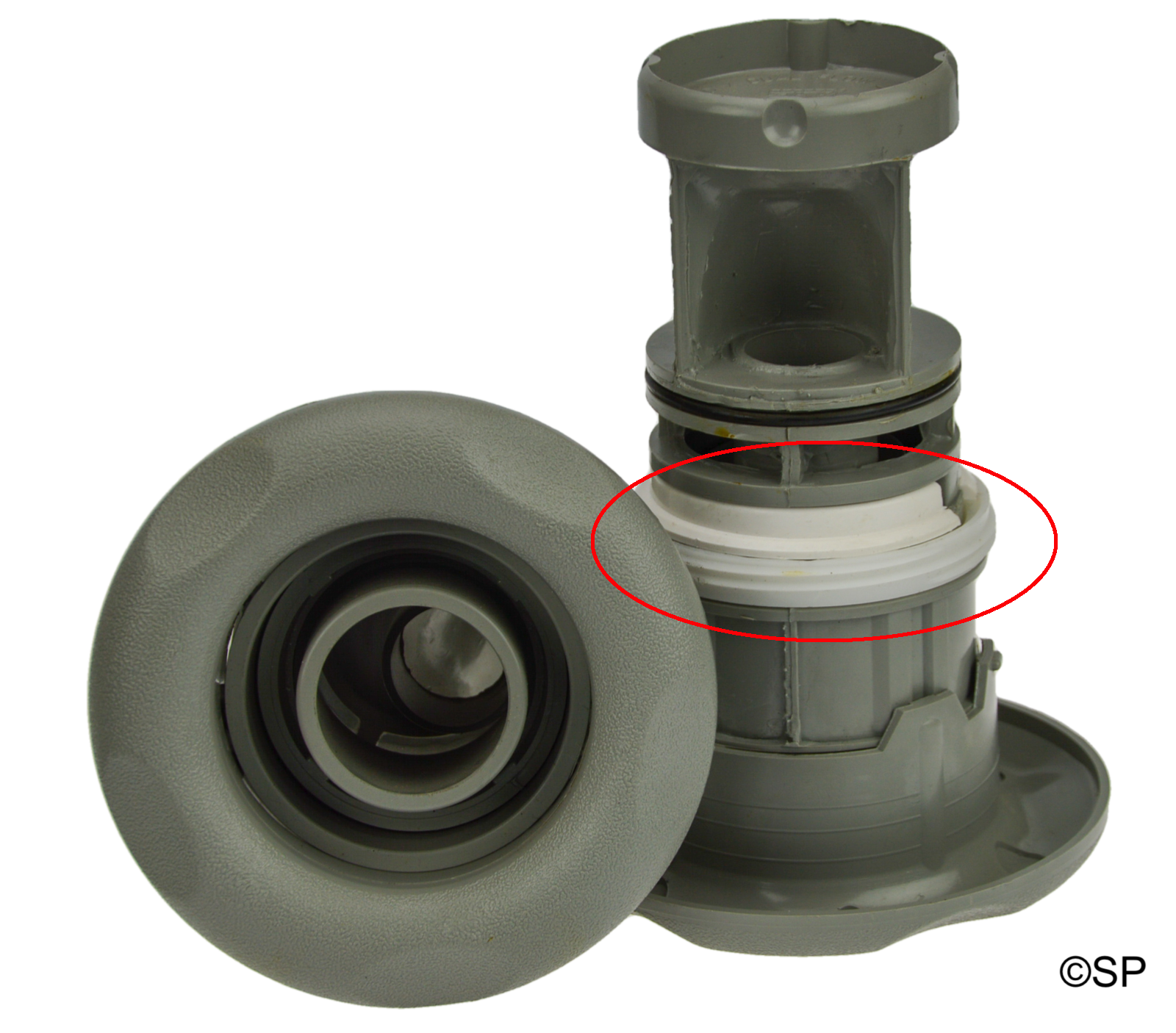

White threaded ring - rotates approx 150 degrees
Waterway Plastics Dual Flo jet barrels are able to rotate 150 degrees / 1/3 of a turn, to divert the water to either this jet or one other jet system/manifold in the spa

IN SOME CASES THE THREADED RETAINER RING ON THIS JET MUST BE REVERSED FOR JET TO FUNCTION CORRECTLY AND TO PREVENT A 'DEAD HEAD' TO THE PUMP WHICH COULD DAMAGE THE PUMP - This depends on which side the water inlet is plumbed to.
