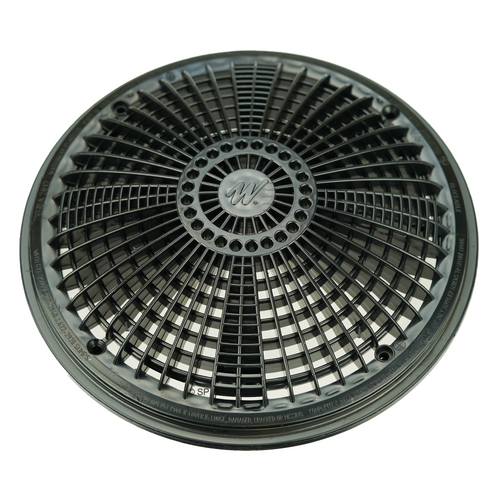

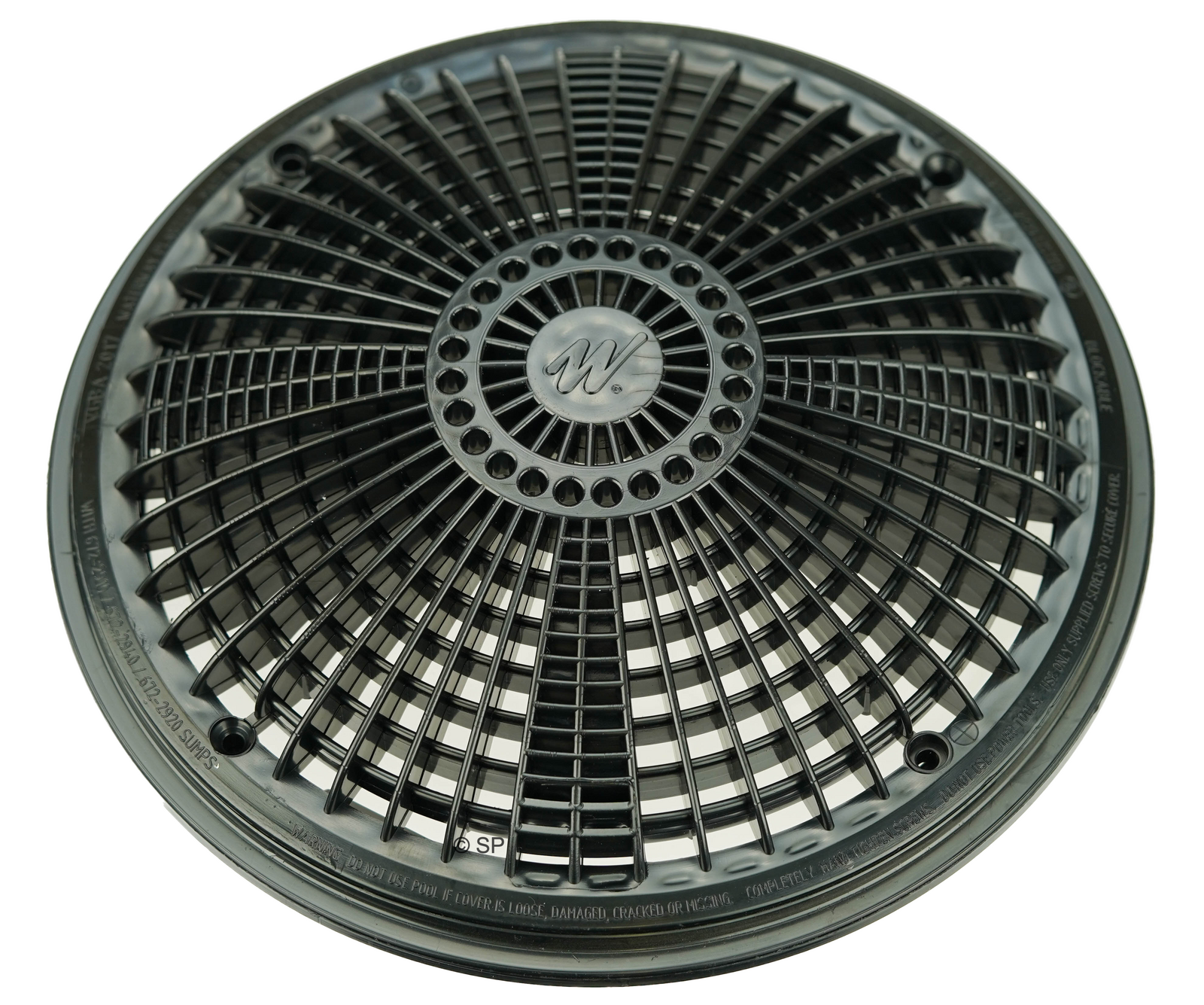

Waterway 10" Tru Flo Drain Cover / Frame - Black

6 In Stock

SKU:

ww640-1901v

Brand:

Waterway Plastics

Shipping:

Calculated at checkout

Product Description

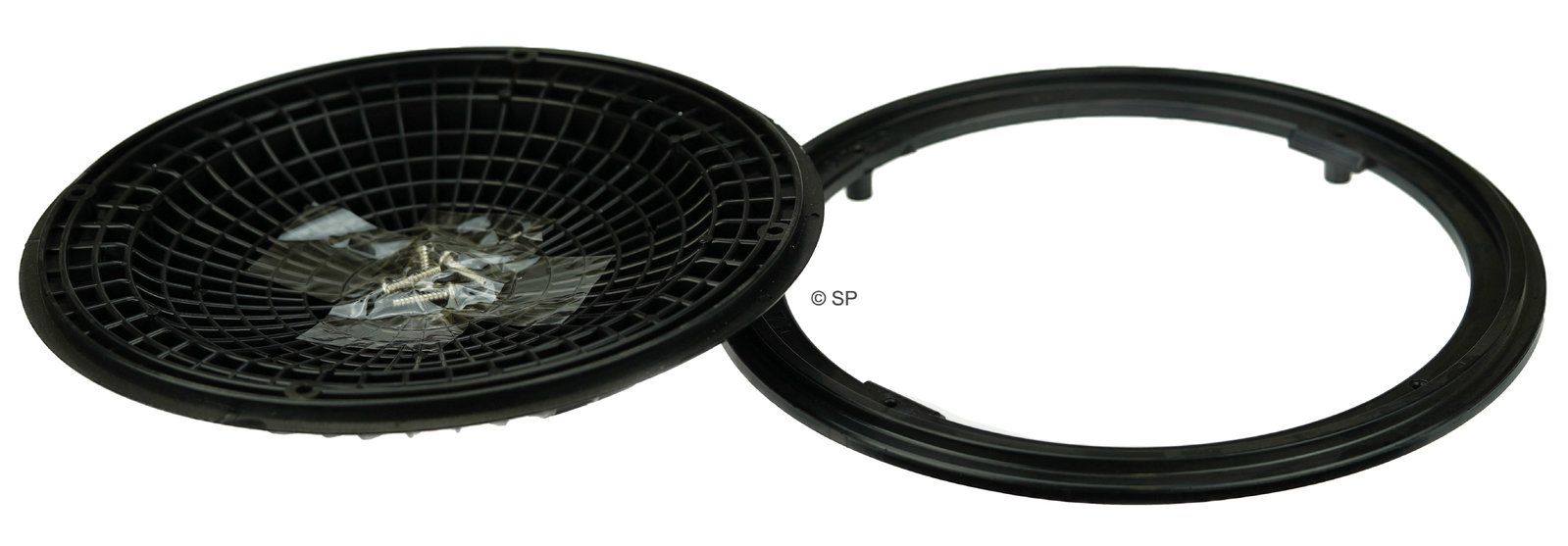

BLACK Waterway 10" tru flo drain cover and frame - suitable for concrete swimming pool installation where a field built sump / drain setup is used.
Frame embedded in concrete during construction, over sump.
279mm diameter frame, 265mm diameter cover, 43mm profile off wall/floor at centre of the cover.
4 x screws for cover fixing (note: aligns one way only)
The Waterway Tru Flo drain cover / frame are fully tested and approved to Australian Standards.
Flow rates -
wall mounted 136 gpm / 514 lpm,
floor mounted 200 gpm / 757 lpm
Included instructions indicate field sump dimension requirements.
Ensure pump / suction/drains are correctly flow matched for your installation
