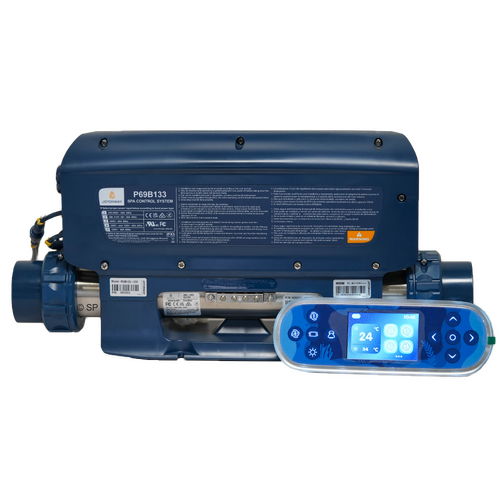

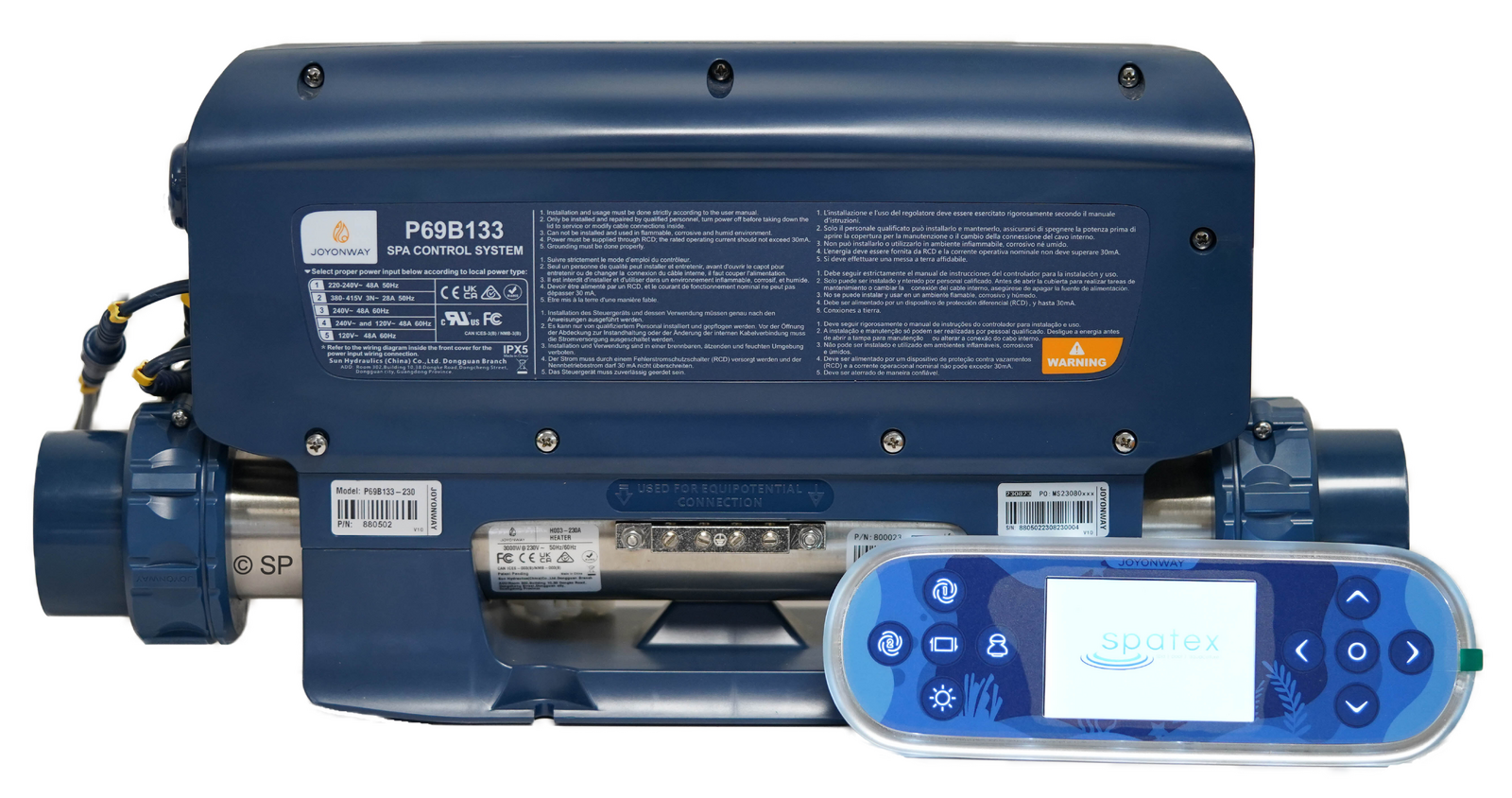

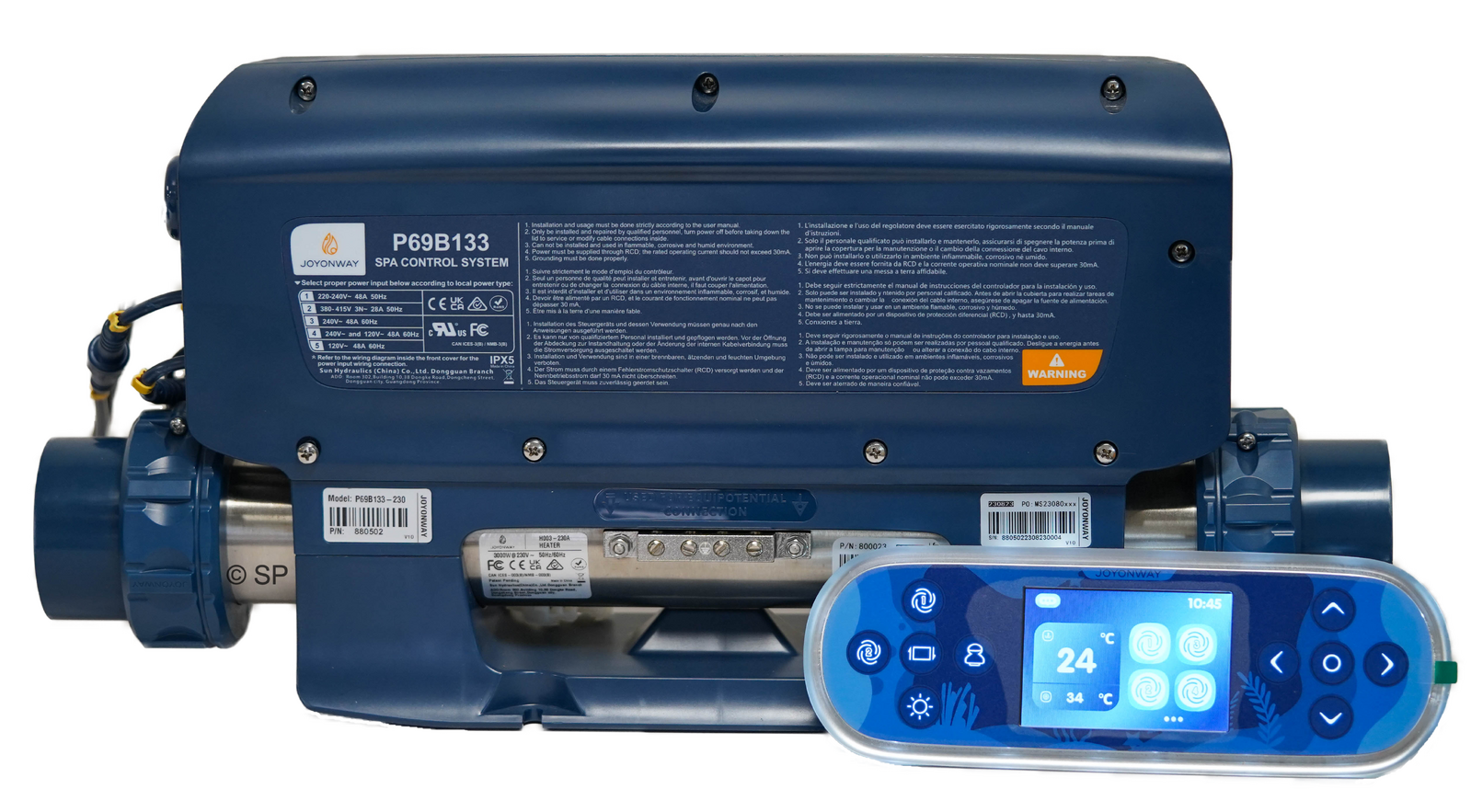

spatex Joyonway P69B133 Spa Pack II with PB563 Capacitive Touch 3.5" colour touchpad - 3.0kw heater WITH WiFi

7 In Stock

SKU:
jwP69B133-PB563-WF-30-K
Brand:
Shipping:
Calculated at checkout

login or register to view pricing

Login/Register

Product Description

NEW FOR 2024

spatex Joyonway PB563 10 button capacitive touch 3.5" colour LCD screen spa control touchpad / topside control
PLUS
Joyonway P69B133 spa pack II with 3.0kw heater

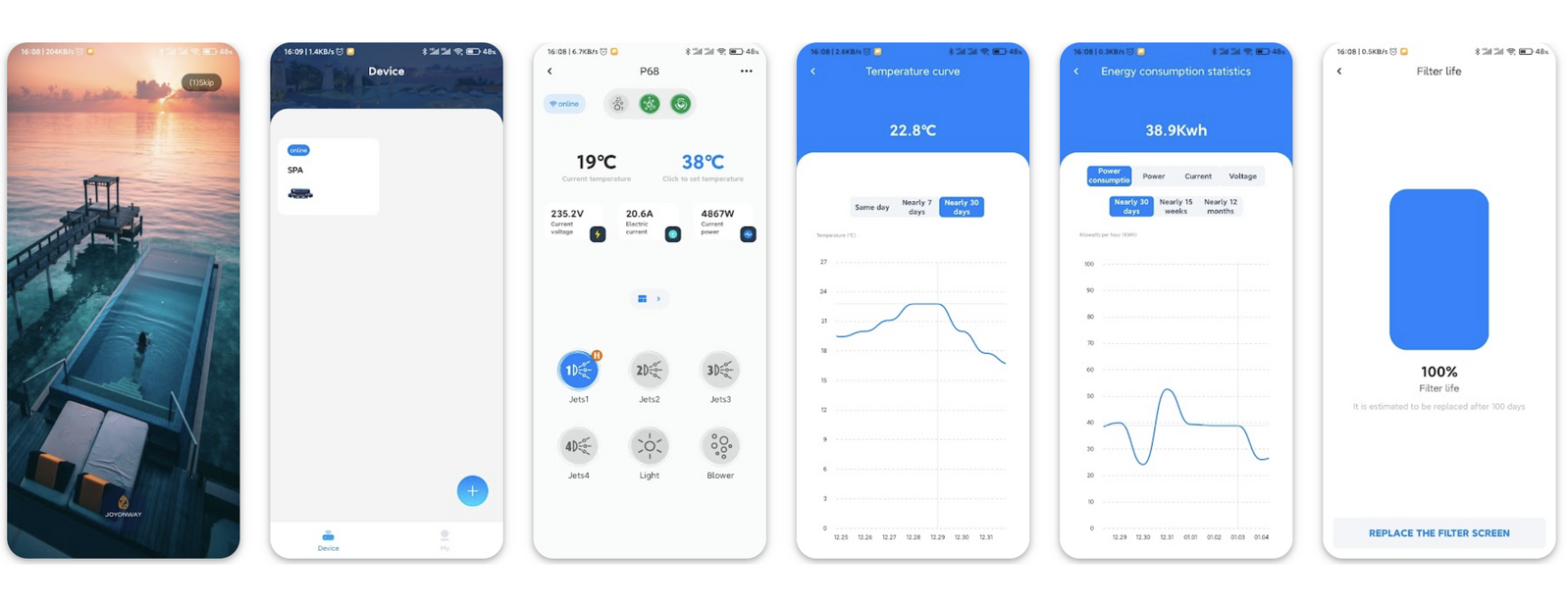

Wi-Fi enabled - built in WiFi transceiver for smart phone App control

Control your spa from anywhere - adjust settings, and monitor energy consumption
Download the App from ios App Store or Google Play - see QR code in one of the images

Capacitive touch buttons only require the lightest touch to operate.
3.54" LCD colour screen - 480 x 320 px
9 language display - English, French, German, Spanish, Portuguese, Swedish, Norwegian, Finnish, Dutch.

Joyonway P69B133 spa control pack
3.0kw heater

Real time energy consumption detection/display
Option - Control from anywhere with Joyonway App - option for Wifi compatibility with either wifi enabled touchpads with built in wifi transceiver, or separate wifi transceiver
On/Off or RGB spa lighting compatible
IPX5 water/dustproof rating
316L stainless heater tube, with passive process treatment and corrosion resistance.
825 incoloy element with high corrosion resistance.
Custom design element with greater stability, low vibration, installed in the bottom of the tube downward facing to greatly reduce the possibility of dry firing with insufficient water flow.

Can control:
2 speed pump 1 or 1 speed pump 1 with circulation pump - Programming must be set PRIOR to connection any 2 speed pump.
Additional 3 jet pumps possible (4 jet pumps in total) **
Air blower,
Ozone,
Light.

** Overall max load cannot exceed 32A single phase so the number of pumps may be restricted based on current draw.

Jet pumps - 10A max load
Circ pump - 2.5A max load
Blower - 10A max load
Light 12v, 1A  max load
220-240v, 50/60Hz, 15A-32A max single phase
400-415v, 50/60Hz, 16A max per phase three phase

Spa Pack - 380mm wide x 238mm high x 100mm deep
Touchpad - 230mm wide x 80mm high, 7mm thick above the spa shell - hole cut out required - 210mm x 62mm, 1800mm lead
