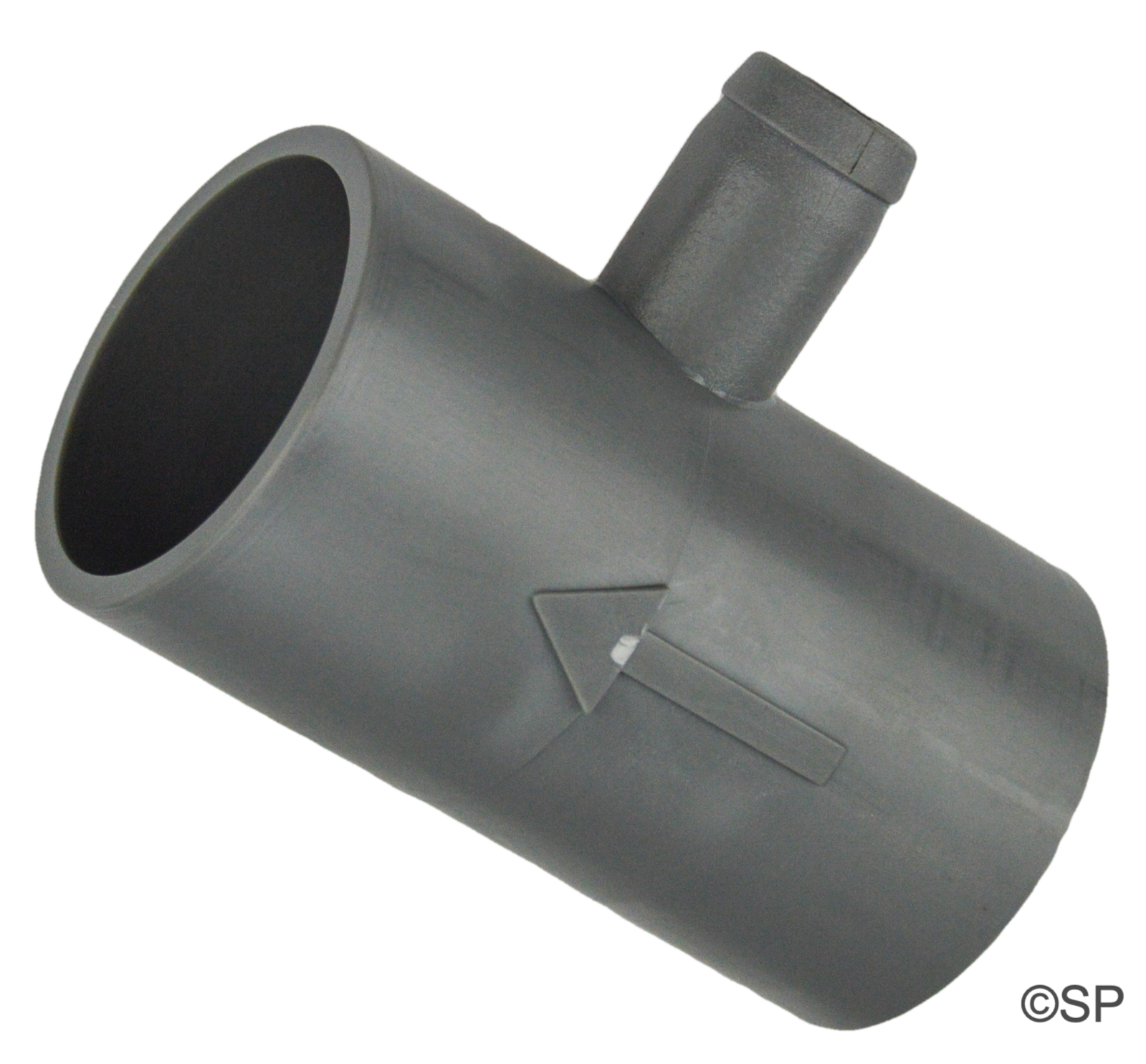

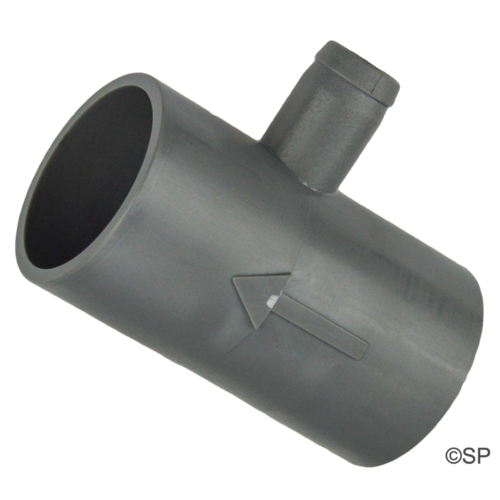

Ozone Pick-Up Tee - 40mm

Ozone Pick-Up Tee - Ozone flow enhancer

RTEEVEN40B

40mm sockets x 3/4" barb.
This reducer flow control tee is designed to be installed in high flow circulation pump systems with ozone to optimise water flow through the ozone injection point.

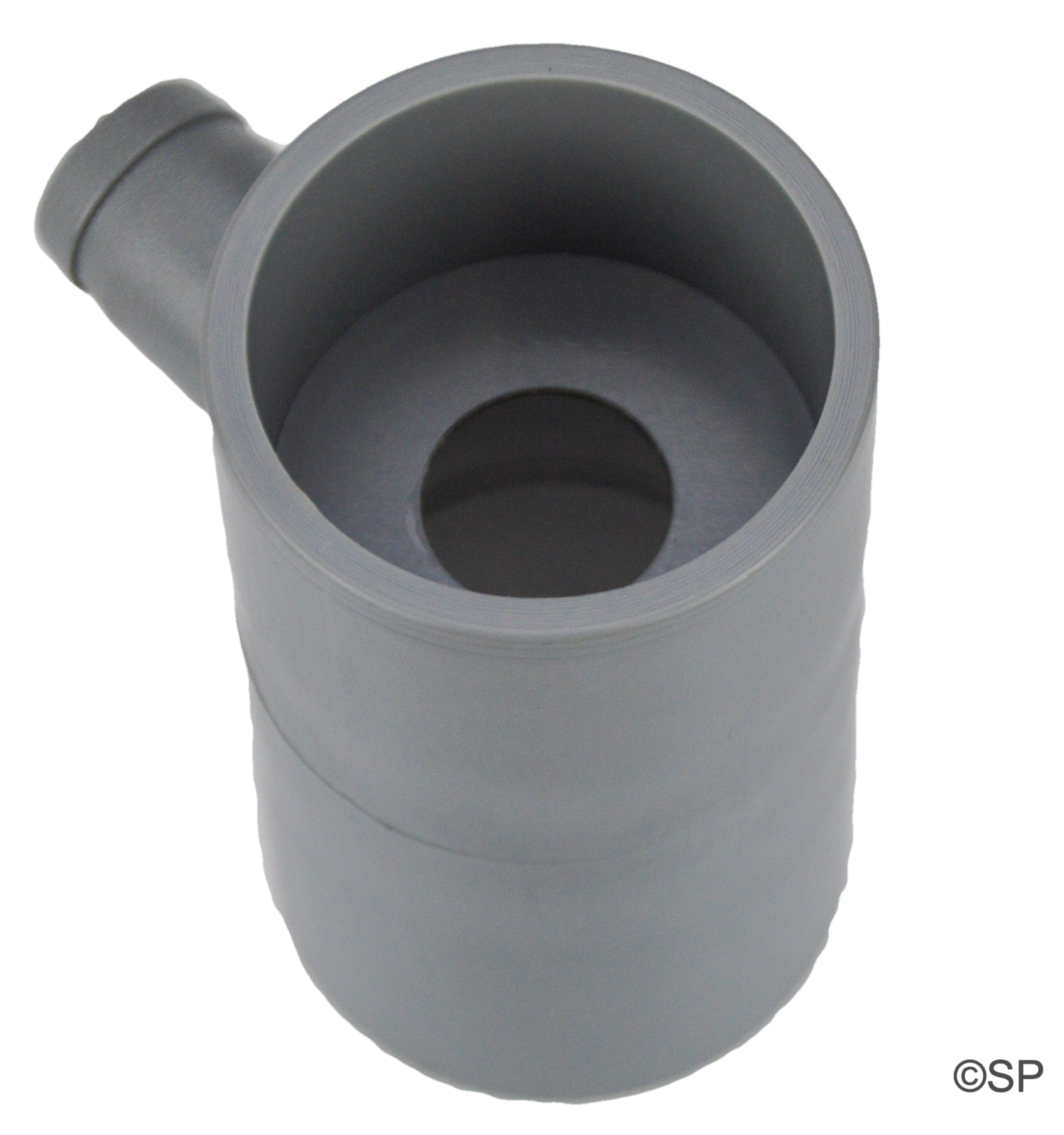

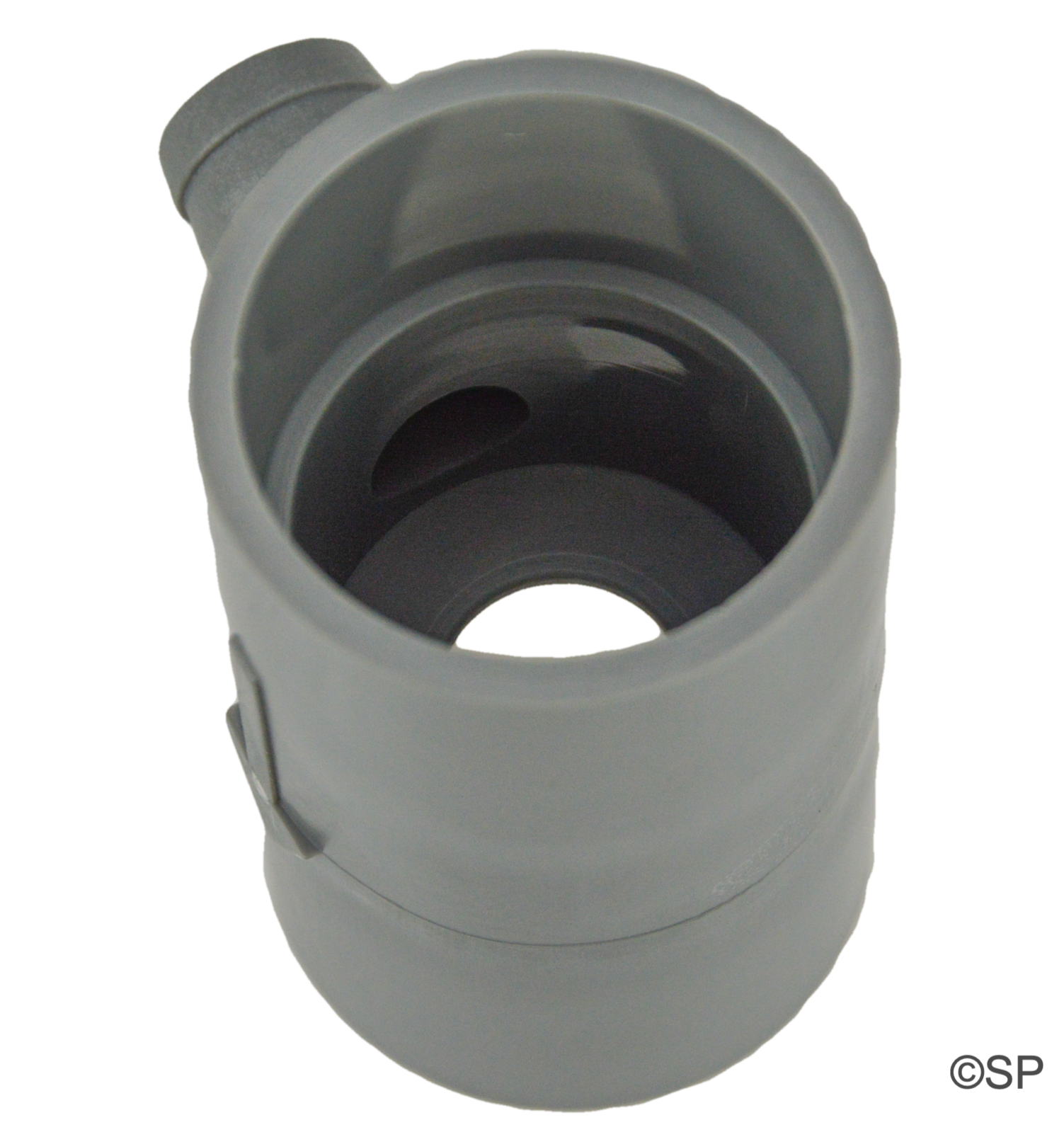

The internal restrictor forces water up the 3/4" barbed port to the ozone injector / ozone plumbing.

For use with 40mm plumbed high flow circulation pumps such as:
Aquaflo Circ-Master
Balboa Circ
LX JA35 / 50
Davey QB035
Spanet XS-3c

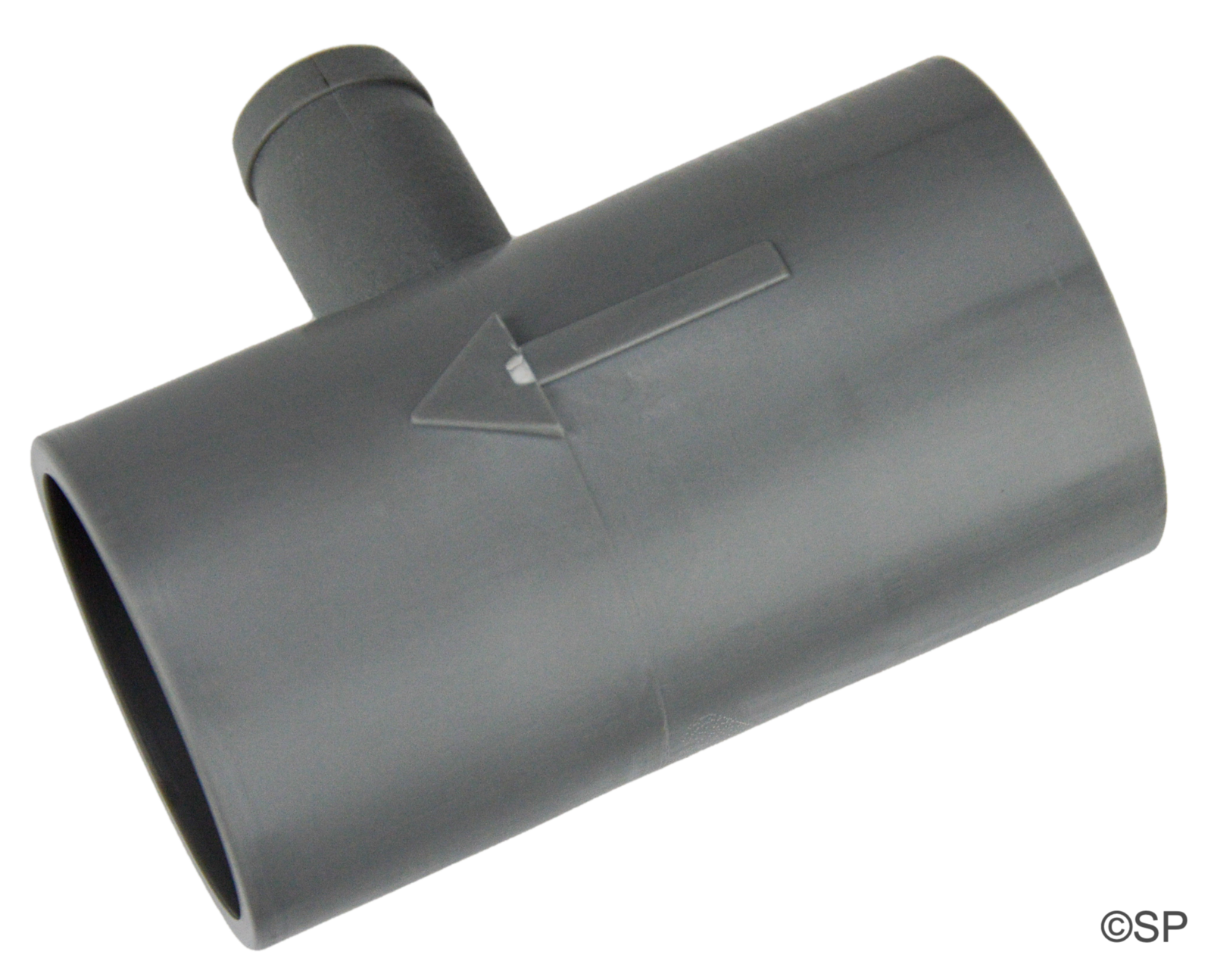

This device is flow directional - note the arrow during installation.
Internal orifice diameter for straight through flow - 22mm
