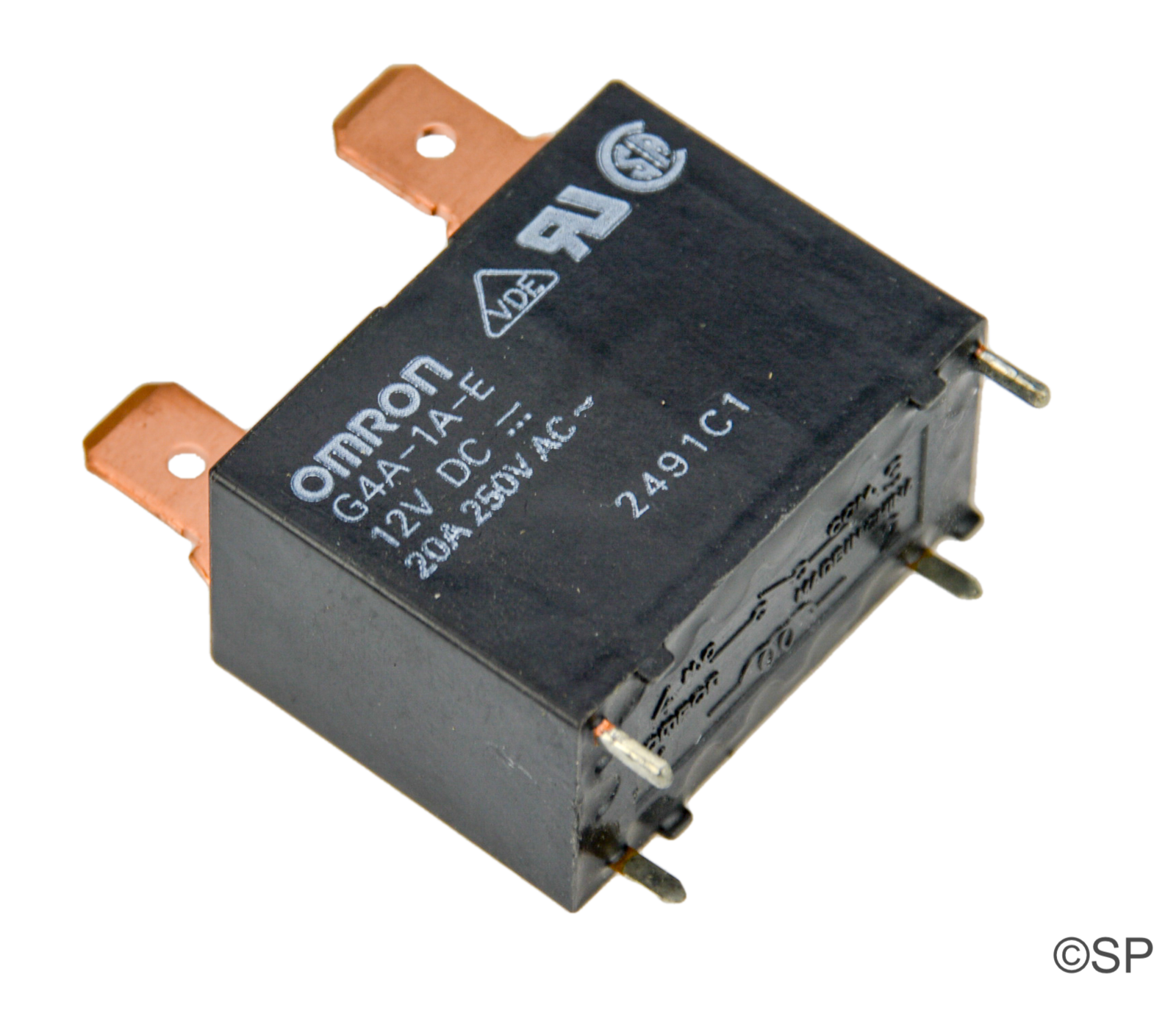

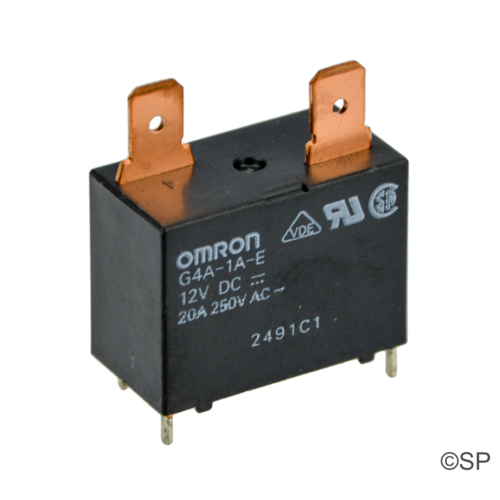

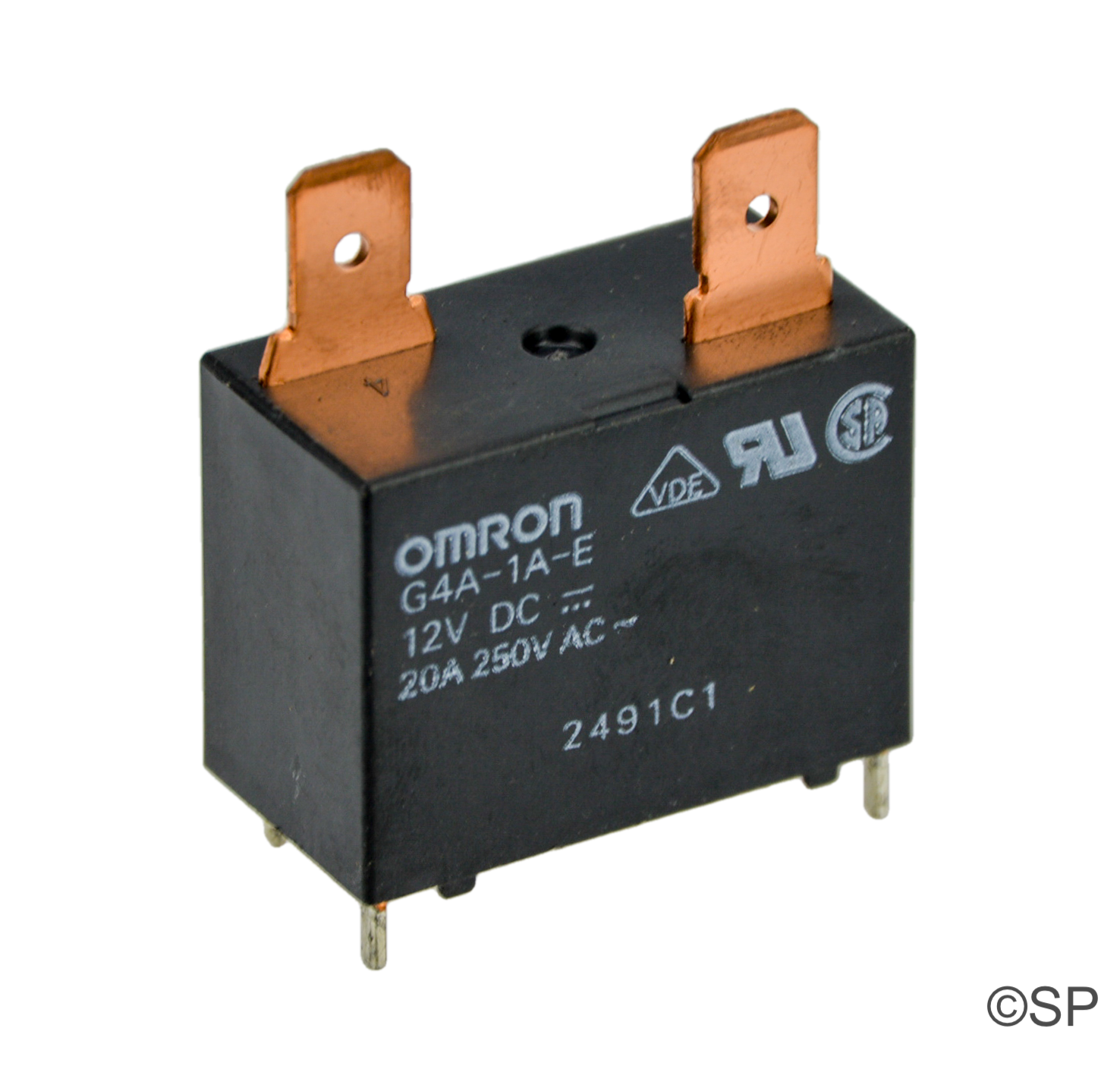

Omron G4A-1A-E PCB Mounted Relay 20A, 250V, 12V DC Coil

PCB relay for Aeware series spa pack circuit boards. Suits Aeware in.xe, in.ye and in.xm series spa packs. Two Pole, Single Throw 20A rated relay with 12v DC coil. Used on Printed Circuit Boards made by Aeware (Gecko). 30mm L x 15.5mm W x 22mm H (plus spade terminals). Pins spaced 11.5mm apart (Width), 22mm apart - coil (Length), 27.5mm part - contacts (length). The switched contact pins are spaced further apart (at the relay ends) than the coil pins. The spade terminals are utilised only in an Aeware in.y series pack. Replaces Panasonic ALF1TF12 relay.
