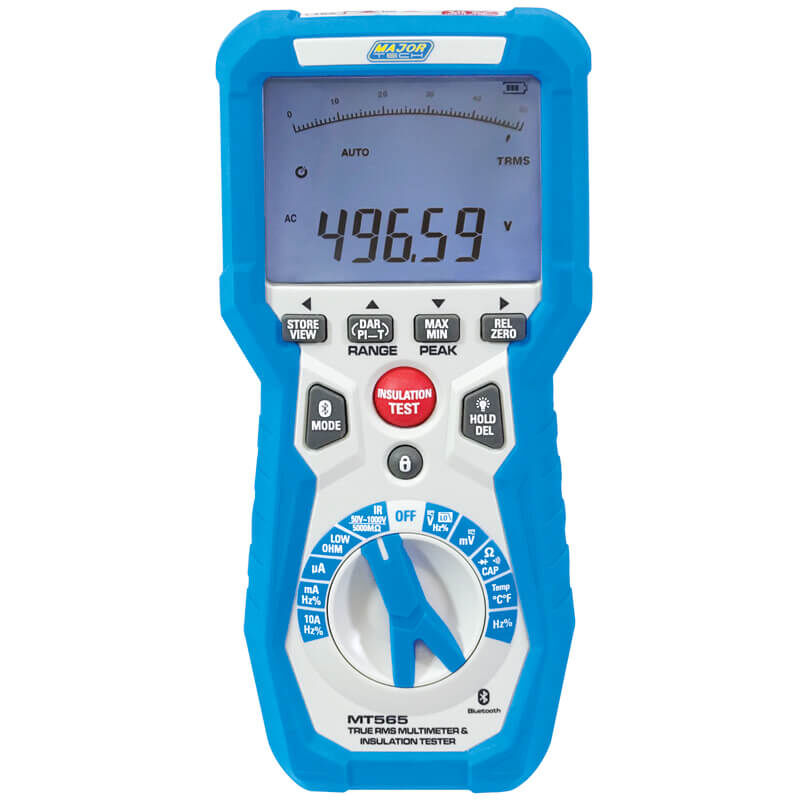

Major Tech MT565 1000v Bluetooth Combination Insulation Resistance Tester (Megger) & Multimeter for Spa Service Technicians

Major Tech MT565 1000v Bluetooth Combination Digital Insulation tester and multimeter for spa service technicians

This unit is IP65 rated* - splash, rain and jet of water resistant. Will not survive submersion.

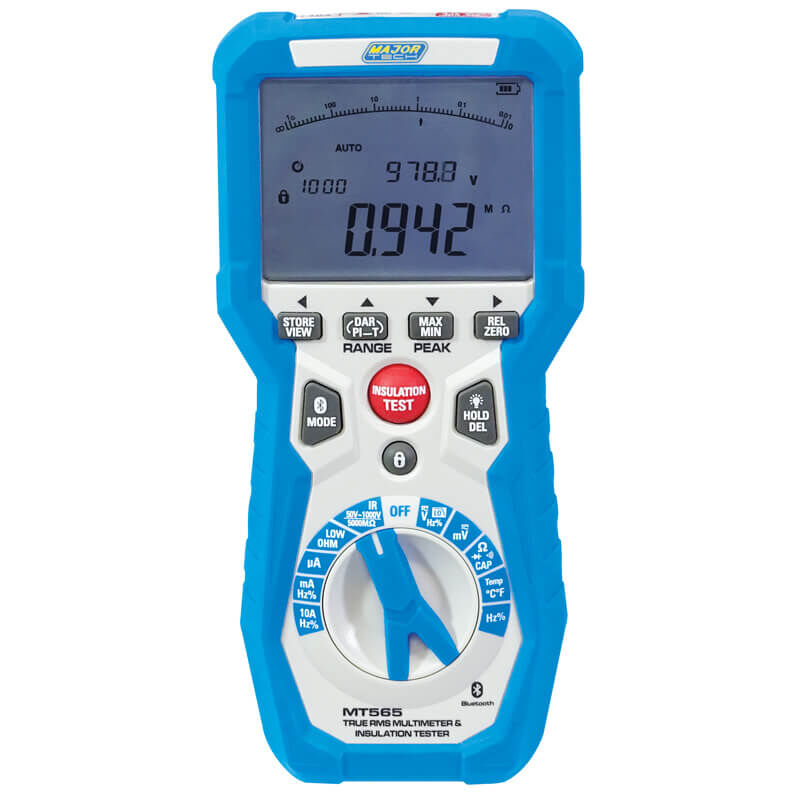

Insulation Resitance Tester generate high voltages (250, 500, 1000v) to pump through electrical components in order to detect internal breakdown/short to earth. This test is not possible and often not detectable with standard multi-meters and clamp meters.
However this unit also incorporates standard multimeter functions in addition to insulation resistance testing.

Using this meter may reduce the overall number of various test instruments you carry.
Most are not rated for protection against water like this unit.

Tests the following important spa related functions:
Insulation Resistance of the complete spa or components such as pump, heater, blower.
Test ranges of 250v (not used), 500v (standard setting) and 1000v (for 415v applications)
Voltage
Resistance of heater elements
Resistance of electronic temperature sensors
Continuity
Resistance of pressure & flow switches
Voltage
Capacitance
Frequency
Variable frequency drives
Temperature**

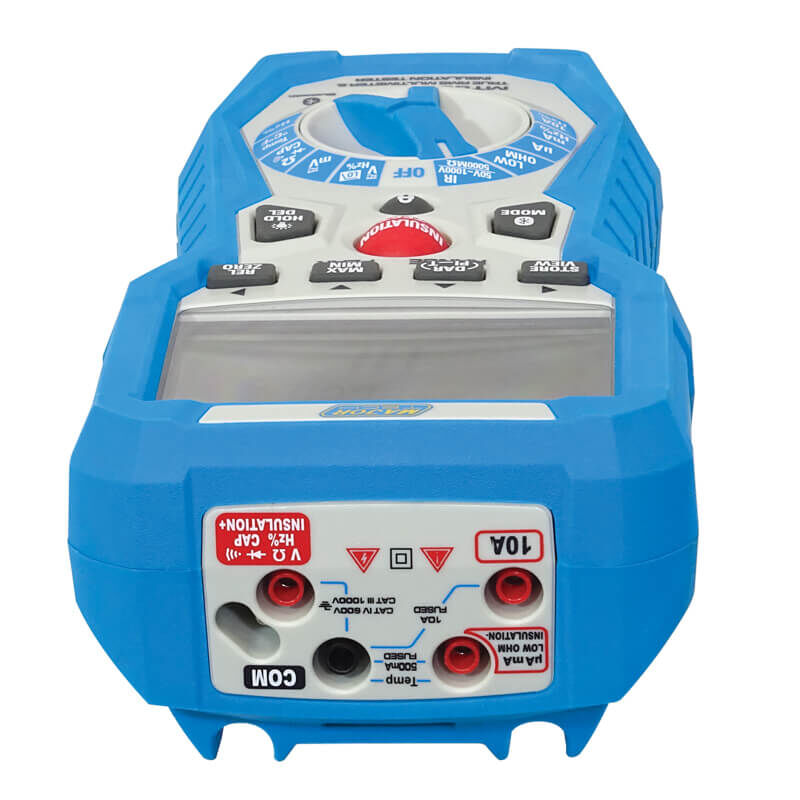

NB - test probes must be positioned in different ports depending on the test being performed.
The 'Common' port is always used with one probe.
Most tests utilise the red test probe with 3 pin connection except the following:
Temperature
Current
Low Ohm resistance
Ensure you follow the included instructions to avoid damage to the meter due to incorrect connection.


Additional features include:
Backlight
Bluetooth


Includes:

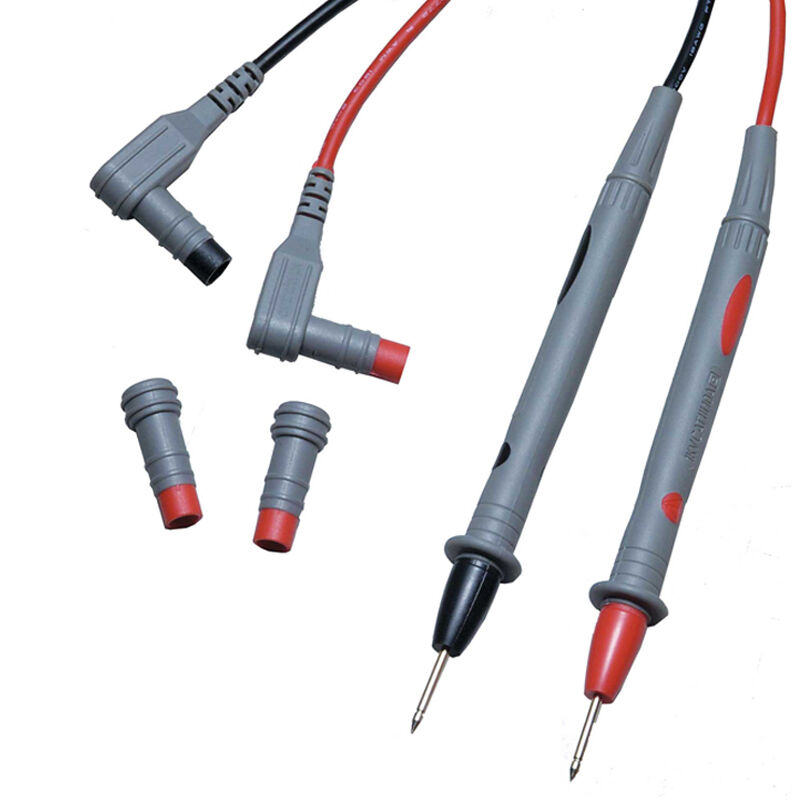

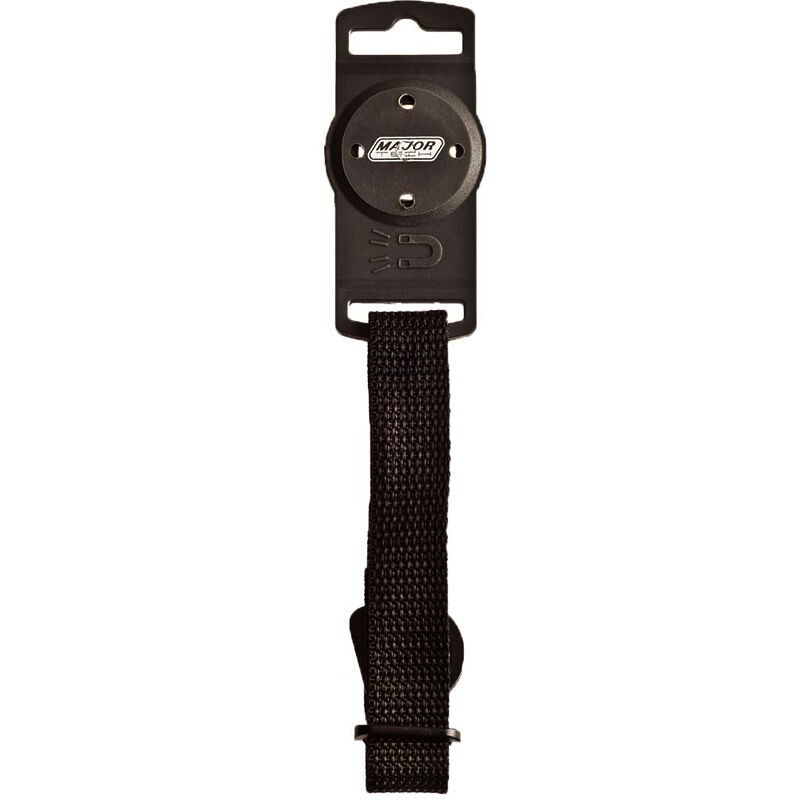

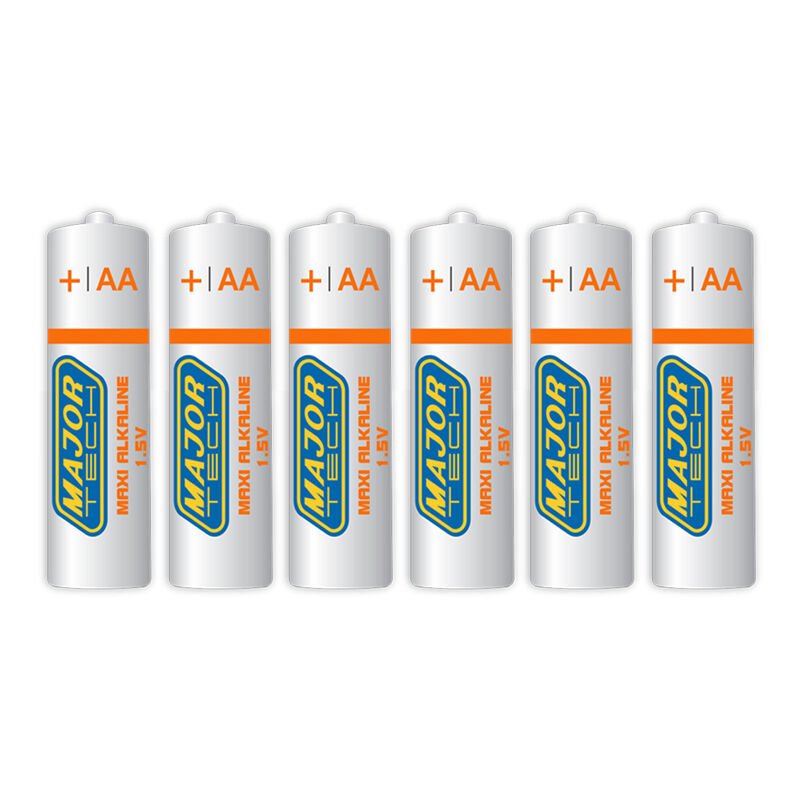

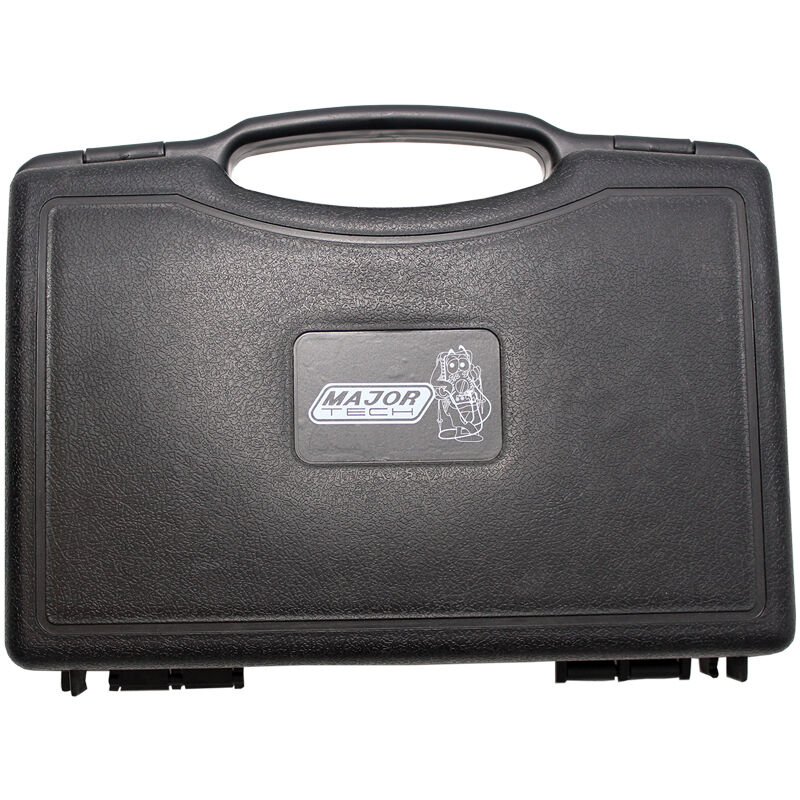

Soft carry case, test leads, instruction manual, magnetic strap, Alligator clip lead, 6 x AA batteries

Ensure your safety when working in and around spas.

Warning - to be used by competent persons only.
Never solely rely on test devices and ensure you have adequate knowledge on the testing and use of this tool.

*IP65 rating/protection requires all test ports to have leads and plugs in position.
** Optional extra water/general temperature probe available separately.
