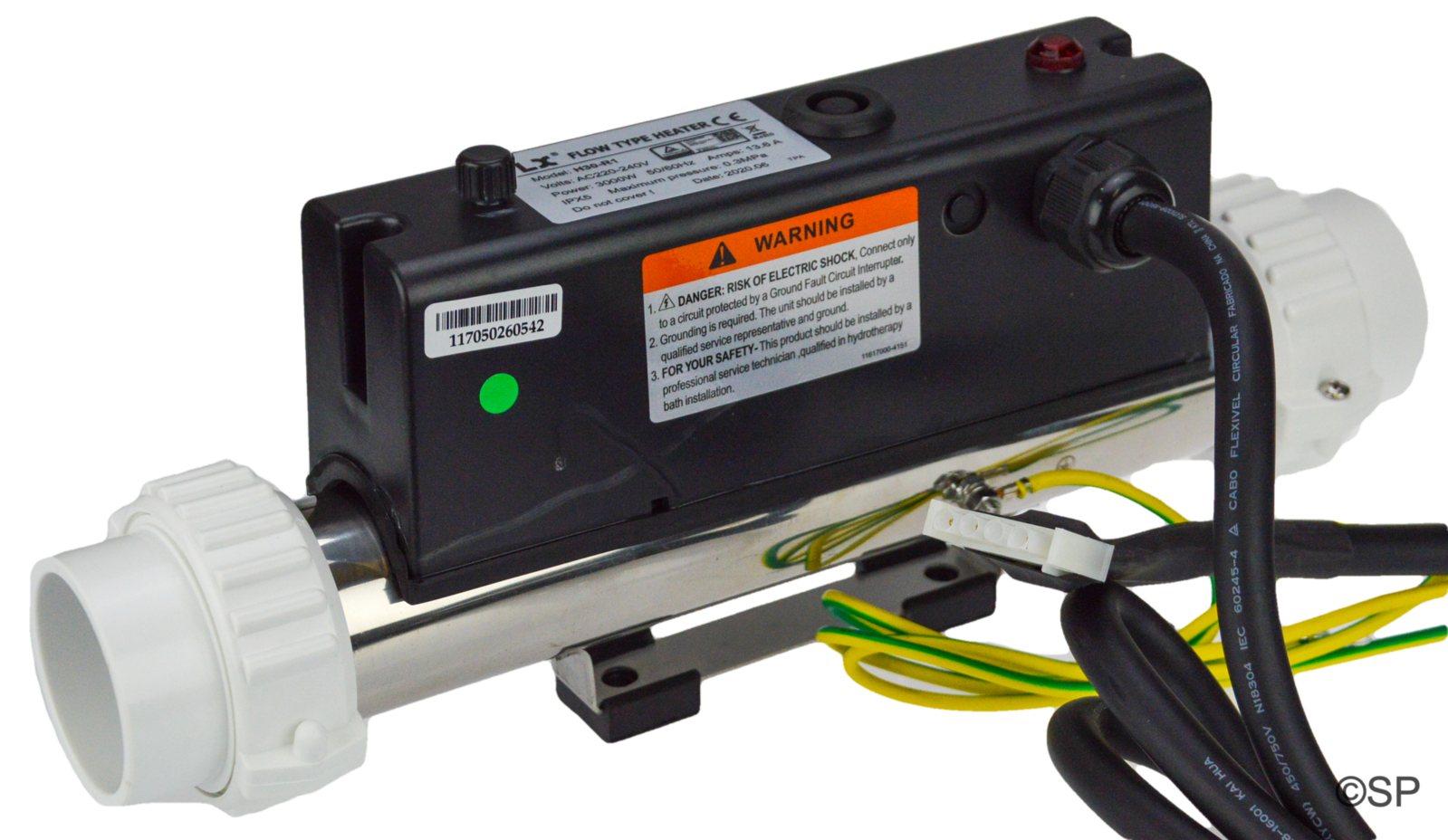

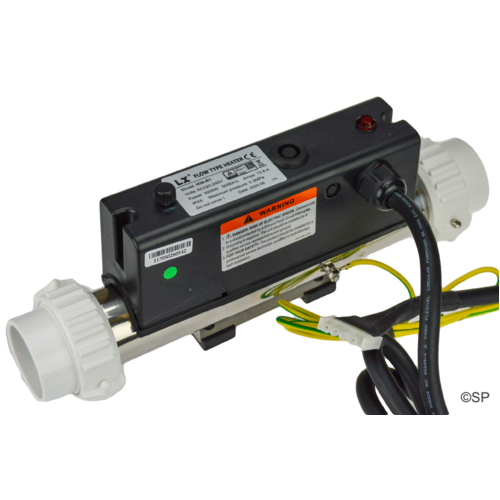

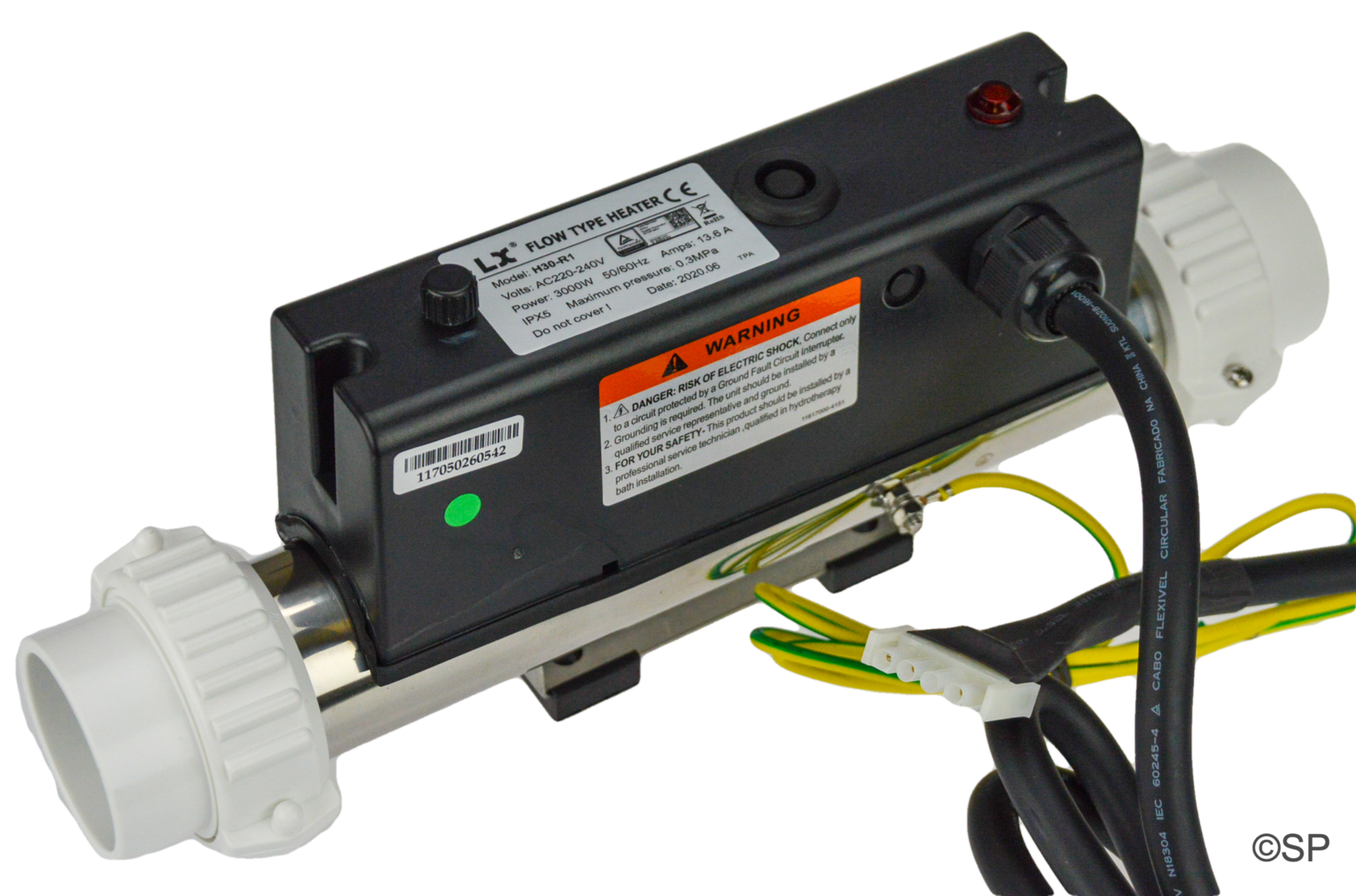

LX Flow Type 3.0kw Heater - I Type Straight Through Heater Tube H30-R1 - Single wire

SPARE PART ONLY - This is not a stand-alone heater.

LX Flow Type replacement 3kw remote Heater Assembly - I Type straight tube.
H30-R1 Incorporates main power supply lead and seperate pressure switch lead. 1.5" / 40mm unions

SINGLE POWER CABLE VERSION

This heater has no second pressure switch cable - see alternate H30-R1 2 wire heater for that model

These heaters are used on many Chinese manufactured spas with Chinese control systems and can be a replacement for 'Rooster' heaters.
Please note - this 'H30-R1' part number is common to at least 5 different versions of this heater and not necessarily compatible.

3.0kw, 230v Main power cable is AMP.

250mm long tube flange-flange, 50mm OD

There are a number of combinations of this heater that differ from the model we stock and this one will NOT replace - please send images for confirmation prior to ordering.

NB - This heater only works in the plumbing on the discharge side of the pump - it will not operate in the suction line (models with vacuum or flow switches can be found in the suction line)

Some versions use pressure switches, others use flow switches or vacuum switches. Some units use seperate pressure switch wiring, others use integral pressure switch wiring.
This heater uses a pressure switch with separate wiring - have your electrician verify that this unit is correct for your application
This is not suitable for any application except to replace the same product - this is a replacement part only.
