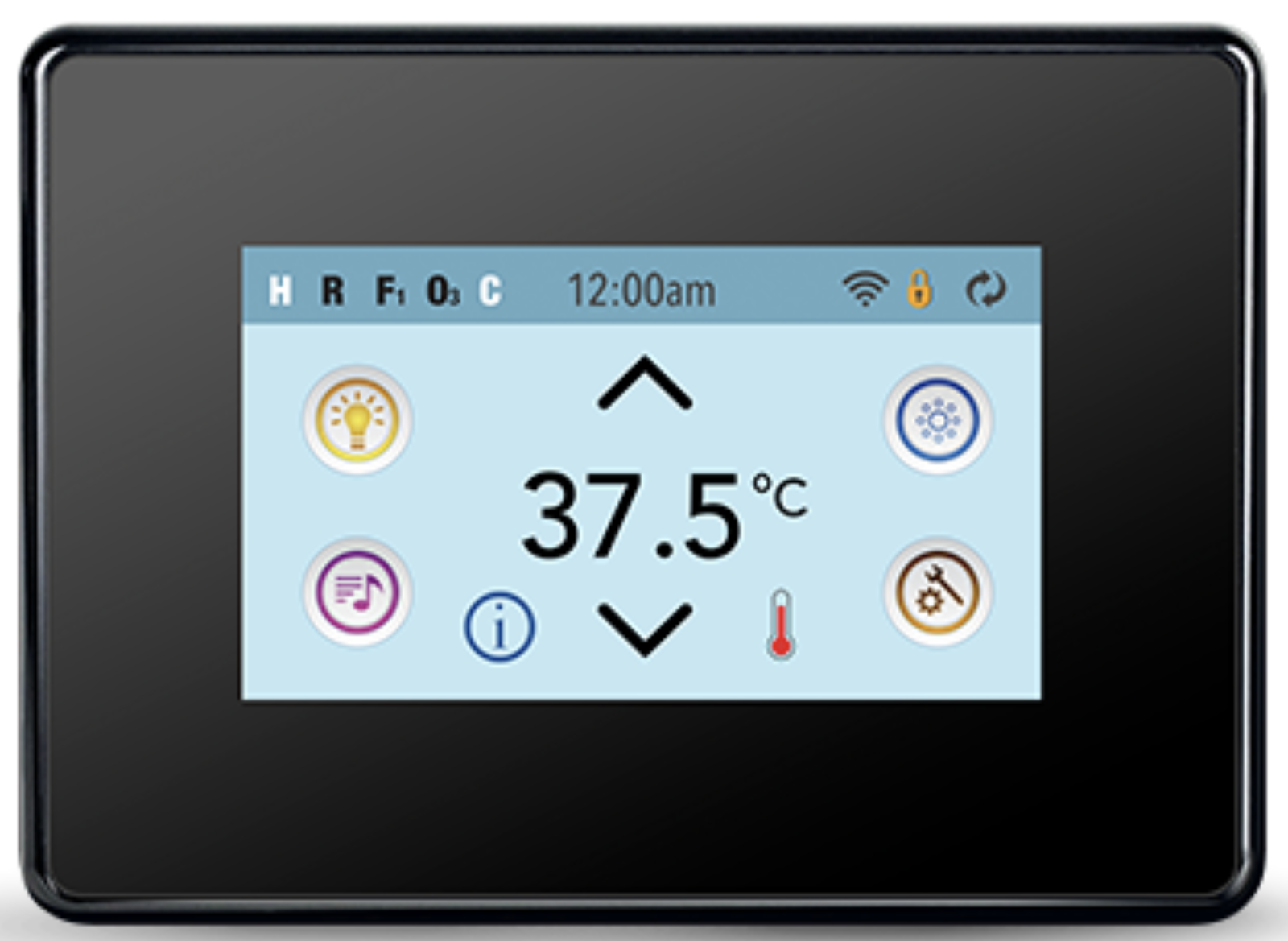

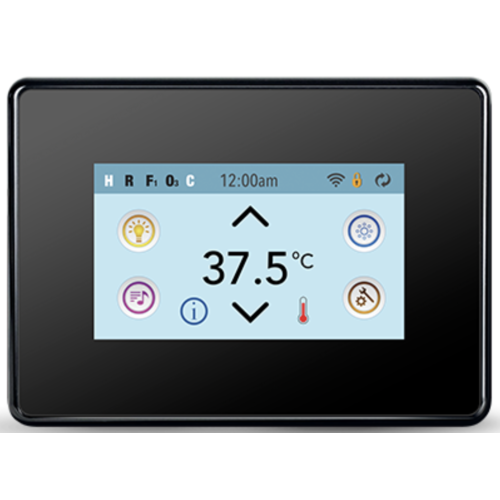

Balboa SpaTouch 2T Touchscreen Spa Touchpad

Balboa SpaTouch 2T spa touchpad - touch screen

Screen size 93mm x 52mm

For use with Balboa BP series spa packs

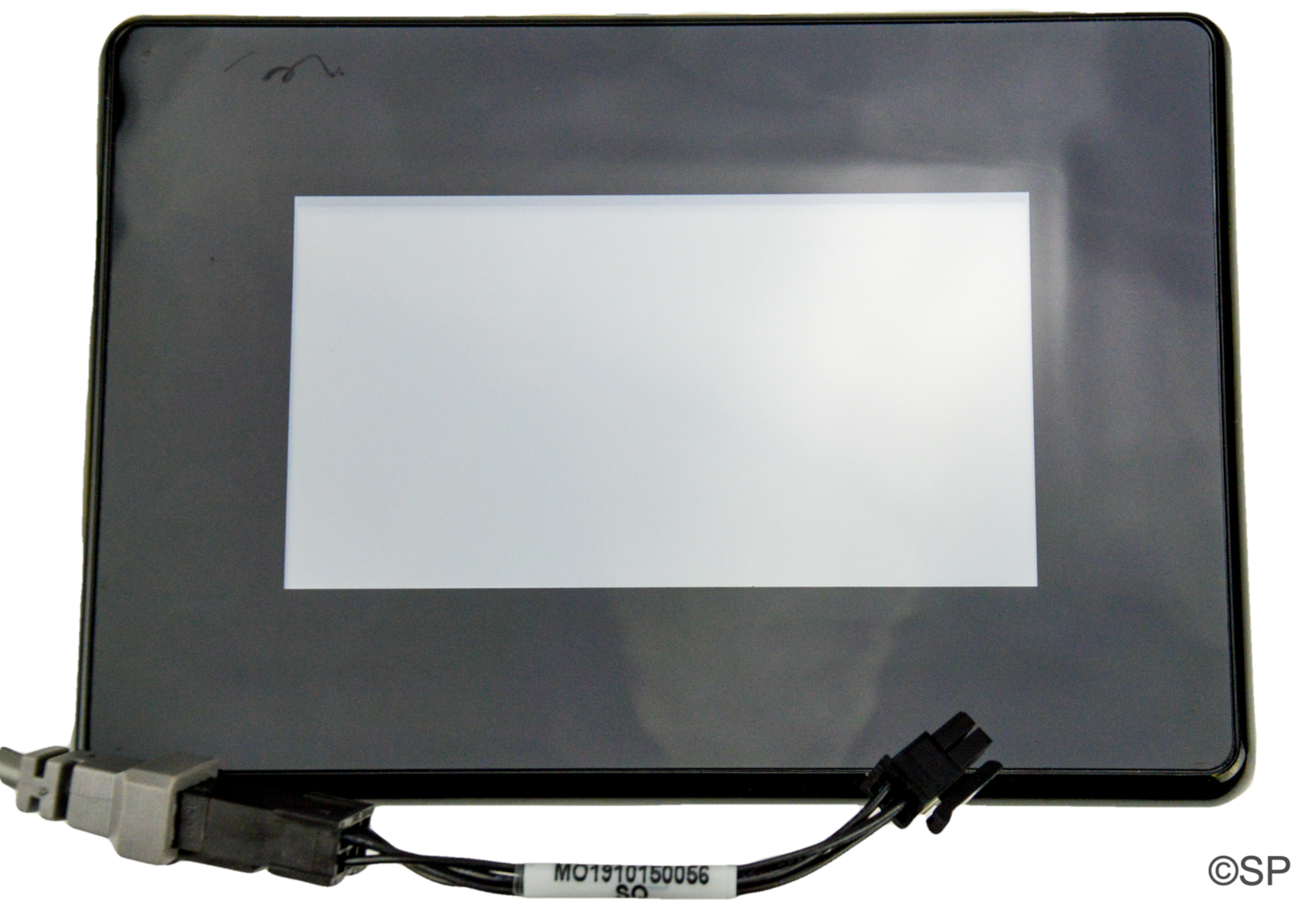

6 pin Molex plug with 6 to 4 pin Molex plug adaptor
147mm x 107mm
hole required 123mm x 83mm
5mm thick glass top
Do not install in spa moisture zone

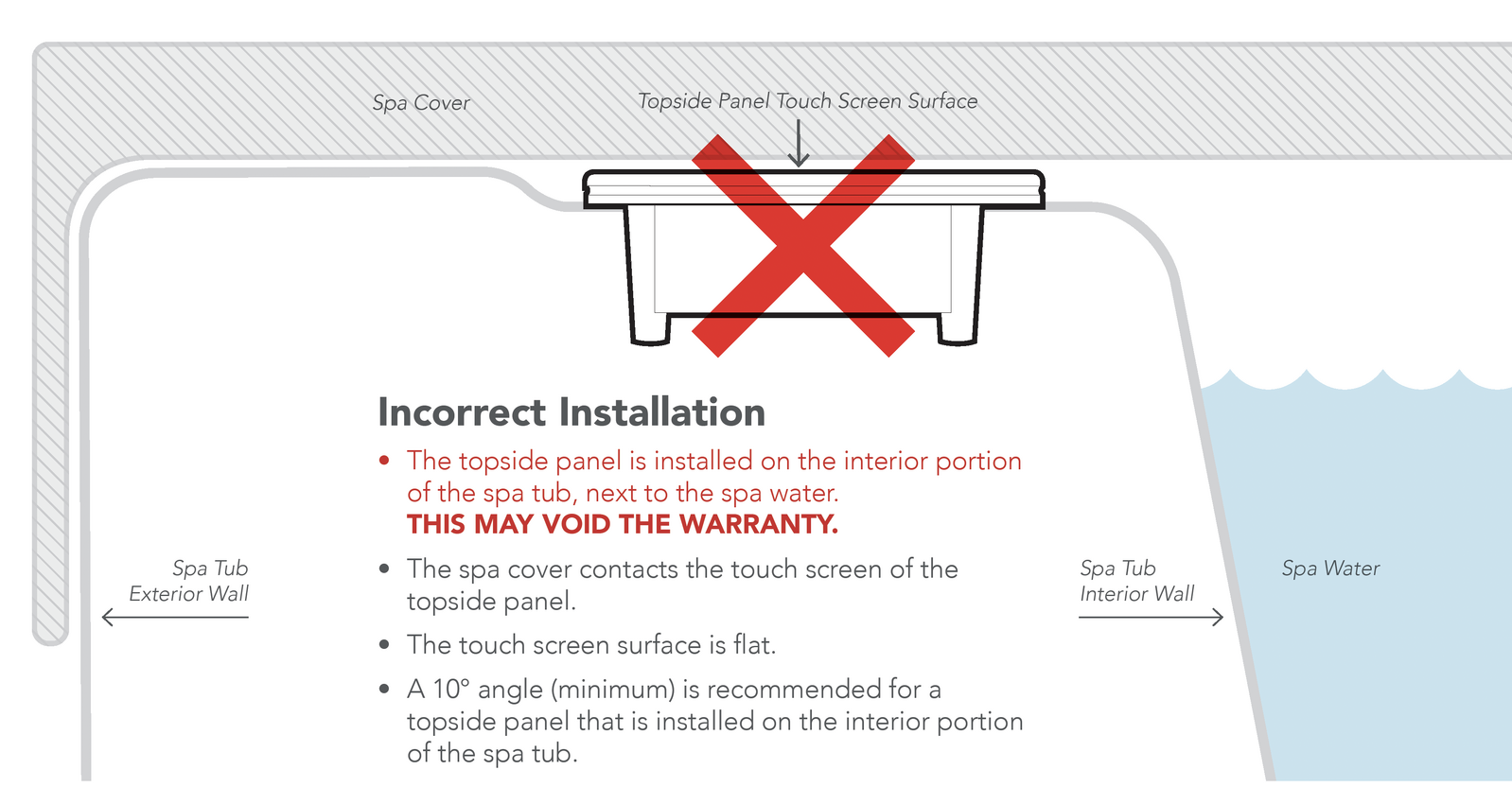

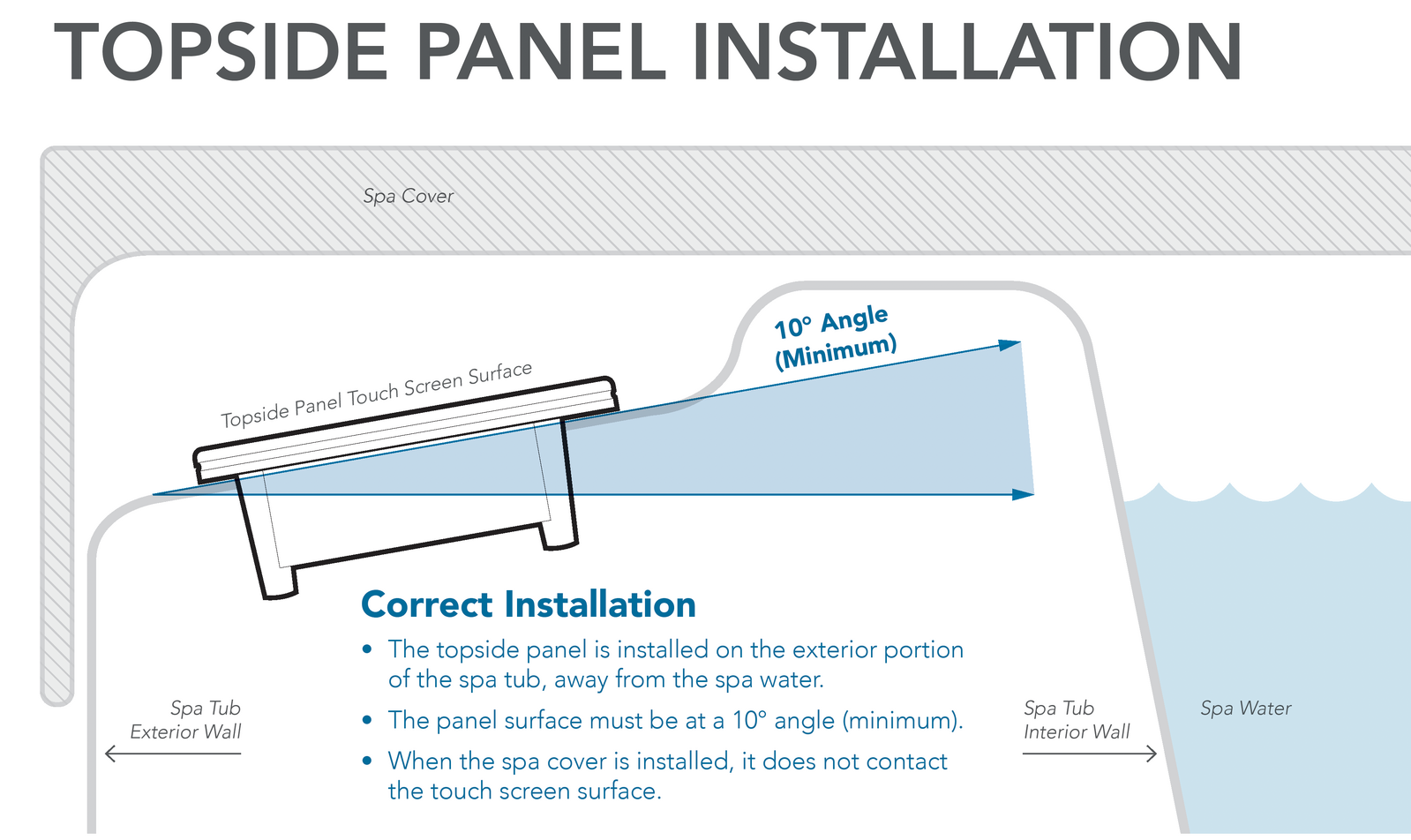

Do not install/fit where there is a risk of excess pressure applied to the screen - ie do not place spa steps near the touchpad, to prevent a user standing or falling onto it, to minimise risk of damage.
