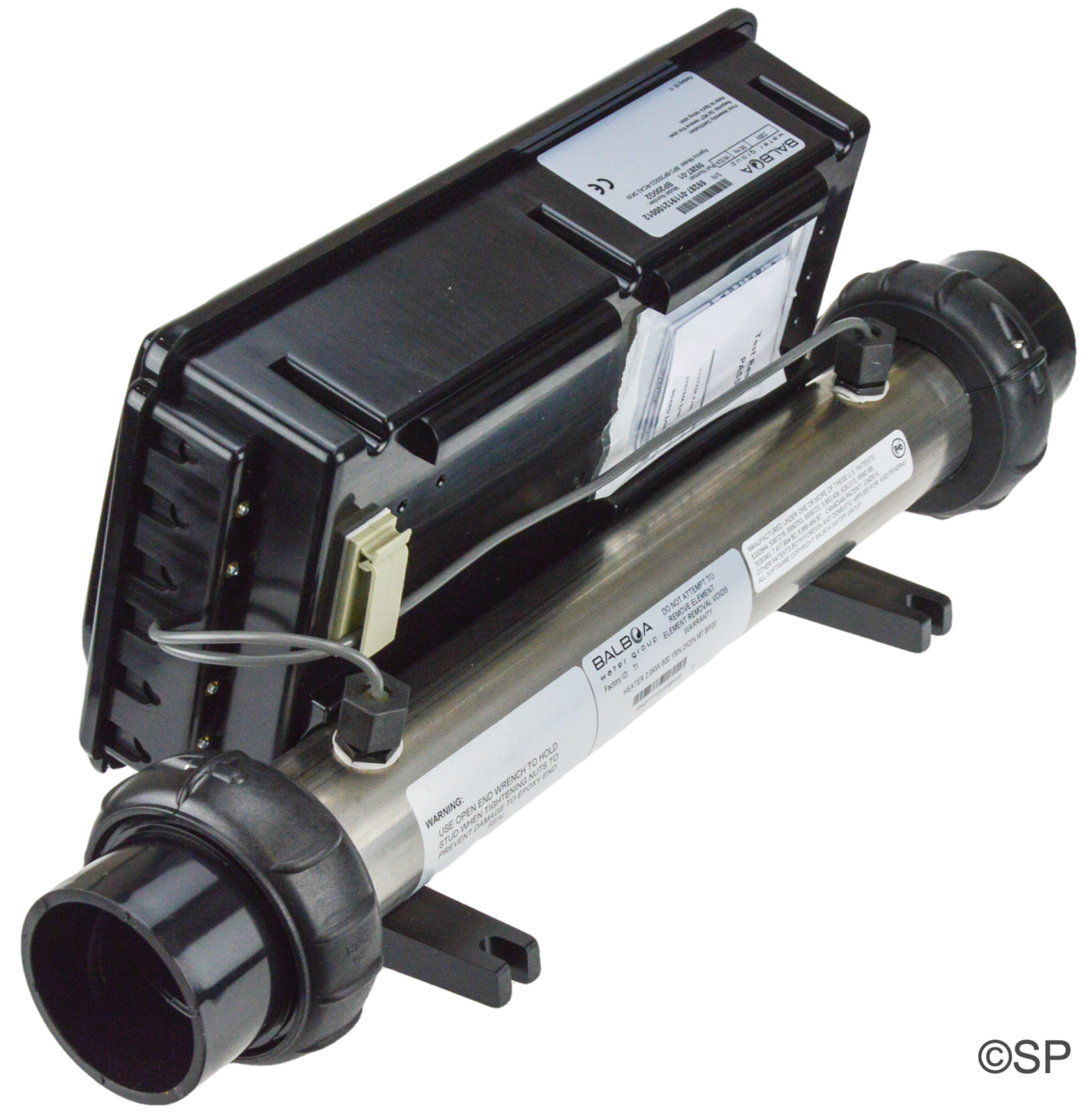

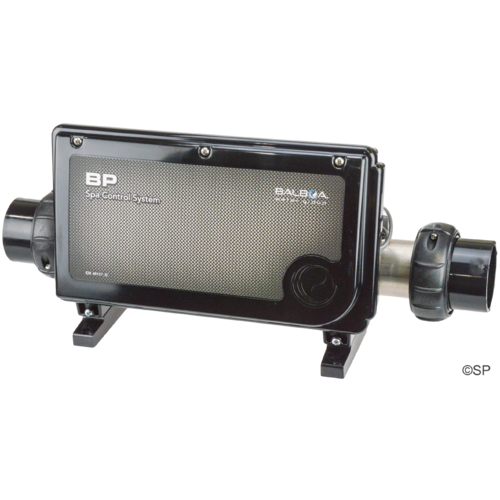

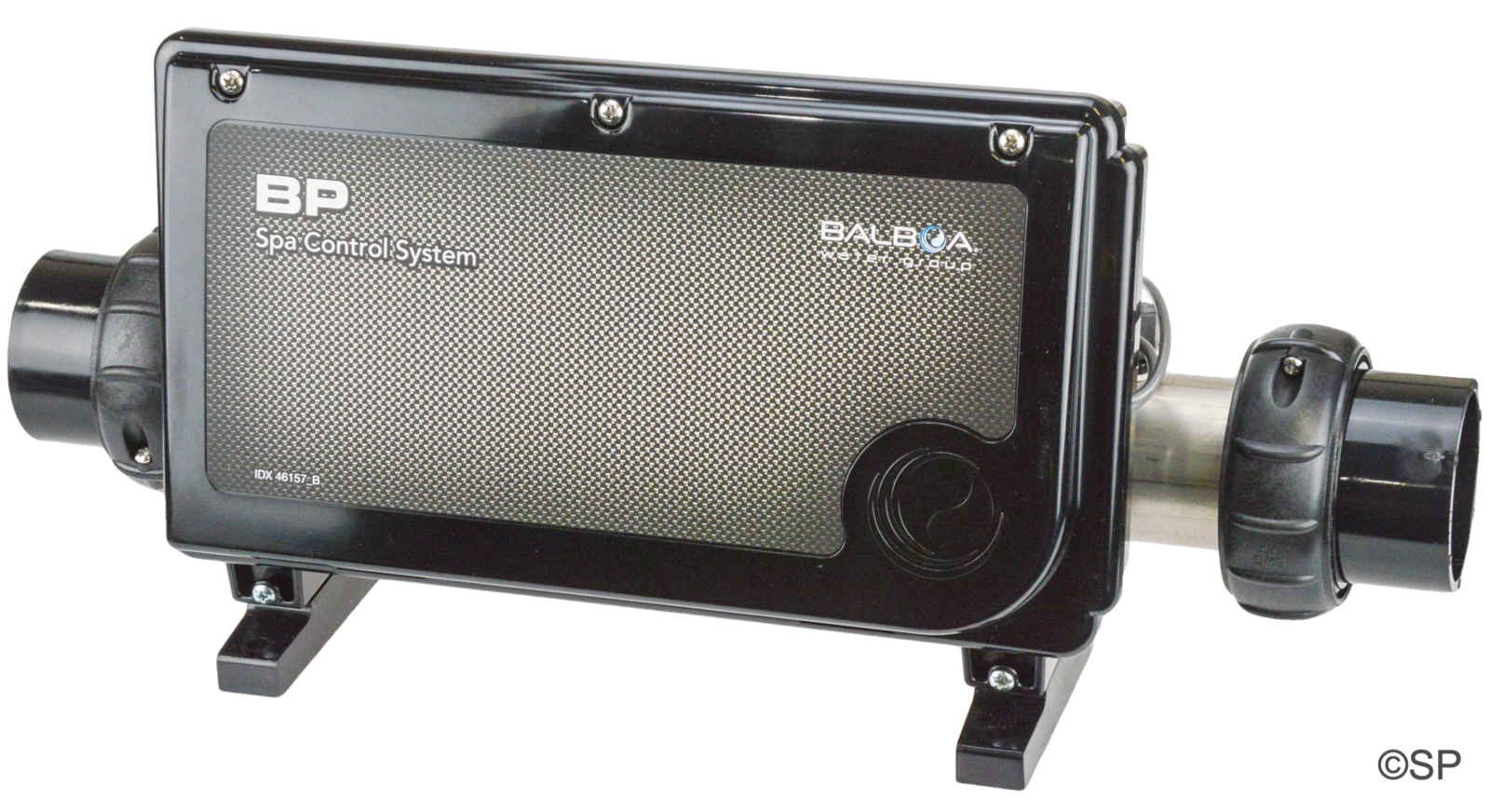

Balboa BP200G2 Spa Control Pack - 3kw

Balboa BP200G2 spa pack complete with in line 3.0kw heater

Suits
1 x jet pump - 2spd pump with/without circ pump or 1 spd pump  with circ pump,
1 x blower or jet pump 2,
ozone,
light.
3kw heater

BWA wifi module/smartphone compatible with separately purchased BWA module.
Use in conjunction with existing or new (separately supplied) TP series topside panels including:
TP400,
TP600,
TP800 colour touchpad,
SpaTouch2 colour touchscreen touchpad.

This pack with 3kw heater requires 15A minimum electrical circuit.

Replacement pack (with separately sold touchpad) for older:
GS501, GS502 systems - same plumbing and wiring connections

DIMENSIONS:
205mm high x 380mm wide flange to flange.
160mm total depth. 90mm depth from the front of the pack to the tube/pipe - *this may be an issue if space is restrictive.

***IMPORTANT - there are multiple variations of BP200 spa packs and they are not necessarily cross compatible. Ensure you are purchasing the exact/compatible spa pack. Model variations include: BP200G1 (2 spd pump or 1 spd with circ ONLY), BP200G2 )2 spd pump or 1 spd pump with circ AND pump 2 or blower), BP200G3 (2 spd pump or 1 spd pump with circ, AND Blower ONLY - does not support 2nd pump instead of blower), and each are available with 2kw or 3kw heaters.
Programming must be set PRIOR to connection any 2 speed pump.
