Aeware in.xtend Touchpad Extension System

Gecko Aeware in.xtend touchpad / keypad extension system

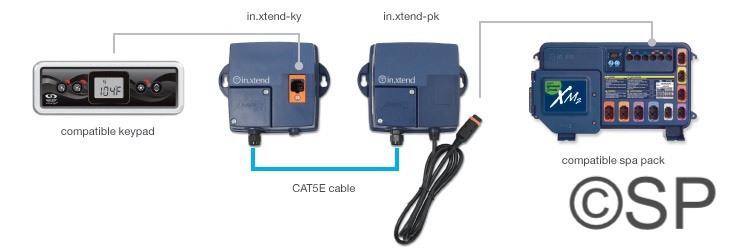

This is used to extend the length of touchpad to spa pack distance up to 90m away from the spa pack for some touchpad models.

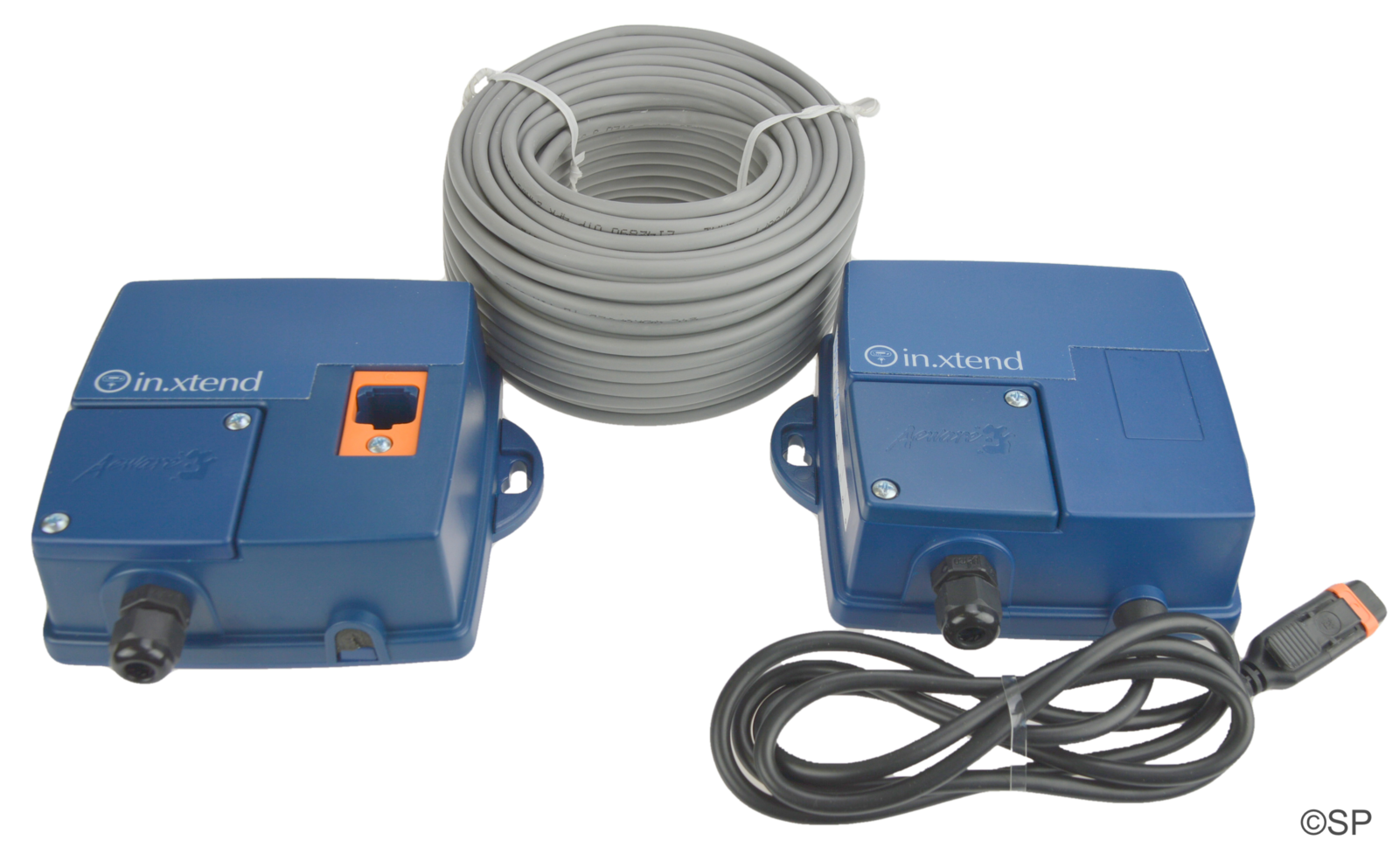

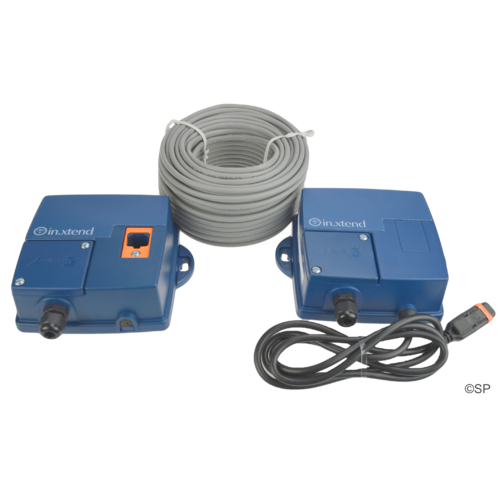

The kit is supplied with the in.xtend control module and in.xtend touchpad module plus a 20m roll of cat 5e cable for interconnection.
If you need a longer cable you will need to source/supply this (do not splice on and join cat5e cable between the two modules)

Can be used with the following spa packs: in.xm, in.xm2, in.ye, in.yt, in.yj, in.xe

Can be used with the following keypad / touchpads:
in.k5, in.k8, in.k52, in.k45, in.k56, in.k72, in.k73, in.k85, in.k100, in.k3XX series, in.k4XX series, in.k600 Static (not in.k600 graphic)

NB. Cannot be used with dynamic touchpads such as: in.k600GR, in.k500, in.k800 or in.k1000.

Maximum cat 5e cable length is as follows depending on touchpad type used:
in.k3xx series - 20m maximum
in.k600 ST - 60m maximum
ALL others listed above - 90m maximum

There should be NO joins in the cat 5e cable used.

Supplied with installation connection and settings instructions.
