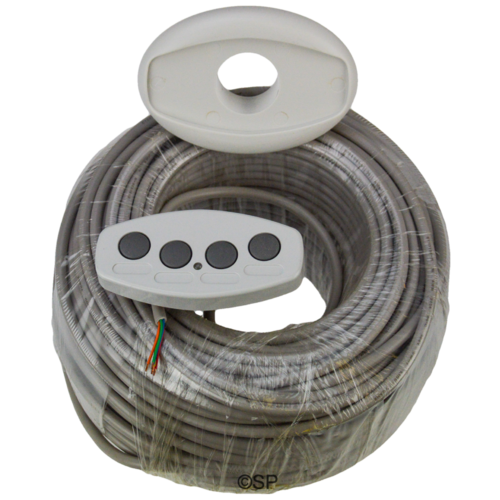

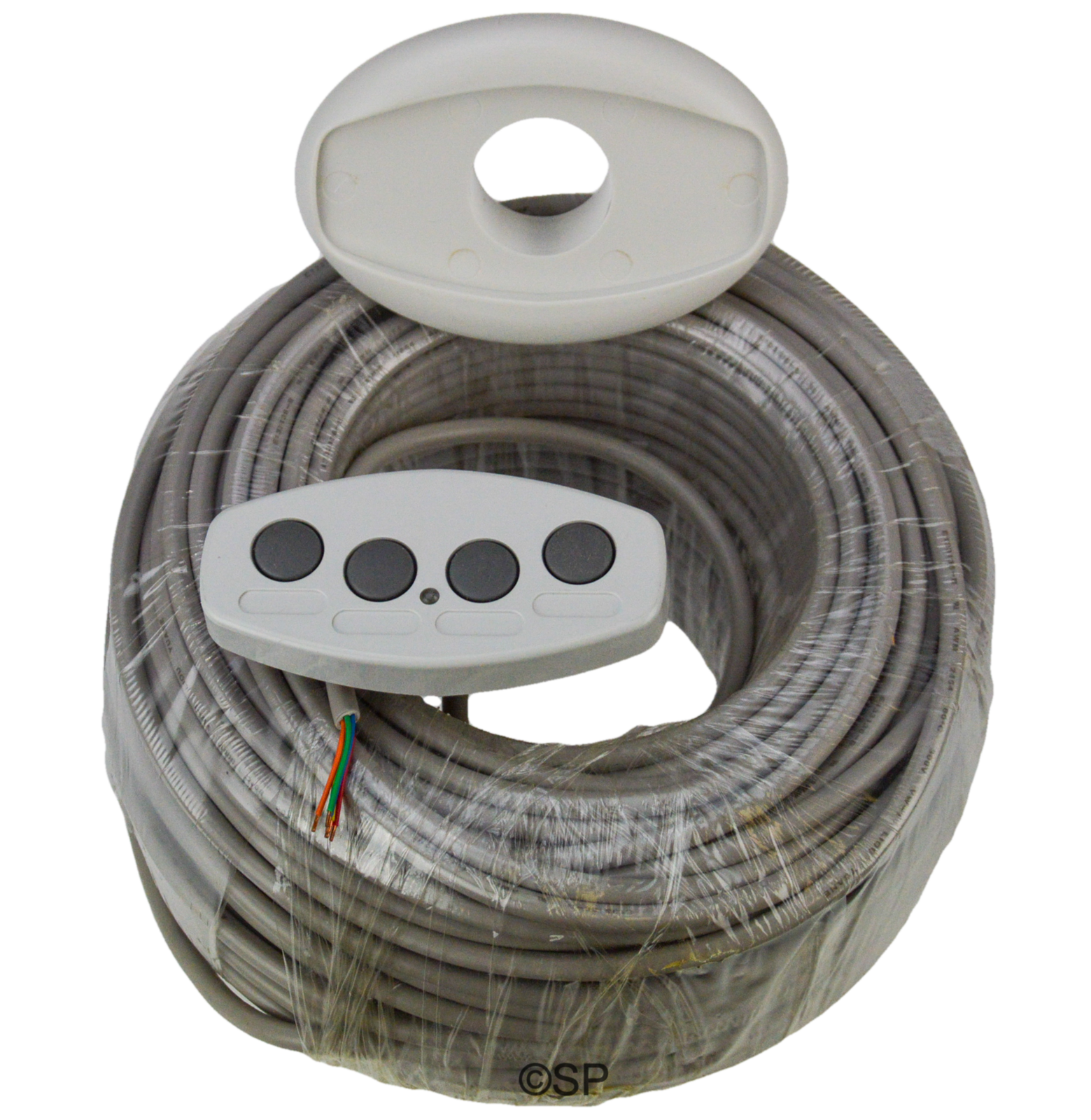

1-4 Way Universal Spa Touchpad - White

White 1 - 4 button universal touchpad with momentary switch buttons - Can be utilised for 1, 2, 3 or 4 functions. LED lamp also able to be used if the application suits.

For use with various applications including:

Electronic airswitch alternative 1-4 output
Spaquip Pulsar 2 or 4 way touchpad replacement*
Spaquip 2095 3 button touchpad replacement*
Spaquip 2095 2 button touchpad replacement**
Any other application that requires a momentary circuit to activate on/off

Ensure your electrician has confirmed suitability of this product for the application you want to use it for.

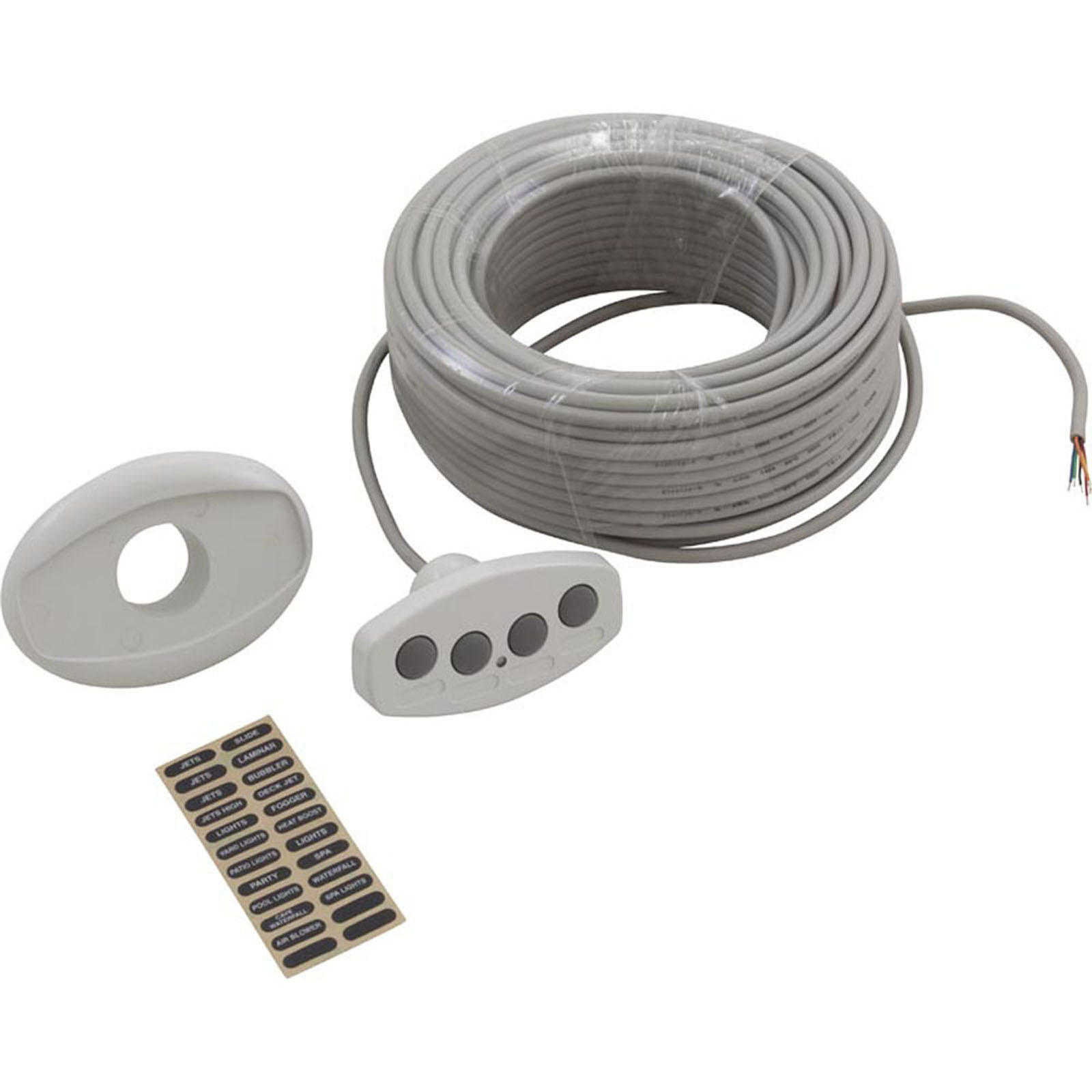

Supplied with stickers to mark button function.

Can be used on in-ground or above ground spas, installed directly into the ground/pavers etc, or acrylic shell.
Resin filled rear for water proofing from below.

Dimensions
Without bezel 82mm x 42mm x 13mm high - 25mm hole required. (Can self align slip fit 25mm pressure pipe.)
With bezel 90mm x 63mm x 17mm high - 30mm hole required. (silicon touchpad to bezel)
45m / 150' cable length supports extremely long runs

* Button functions supported. One LED function 'might' be able to be supported but not tested.
** Not tested to confirm function

Wiring connections:
Black - Common
Orange - 5v DC LED lamp (or can use as Common when connected only to spatex electronic time delay off control box)
Red - Button 1
Yellow - Button 2
Green - Button 3
Blue - Button 4

Please see PDF for wiring instructions for Spaquip touchpad replacements.

For extra low voltage applications only - under 12v
